Overview
Meeting the latest specifications as laid down in the European, United States and associated Pharmacopoeias, the DISi Series are a range of reliable and cost-efficient dissolution tester systems designed with high standards of solid dosage testing performance in mind. These systems simplify the dissolution testing process while minimising user training and routine equipment maintenance.

Key Features

• Ph. Eur. and USP compliant (supports official dissolution methods).
• Integrated precision temperature control and measurement with PT100 temperature probe and single-point electronic temperature calibration.
• Intuitive touchscreen control with icon-based menu structure and sampling alerts (enter timepoints, receive warnings and alerts at sample times).
• Available in six- and eight-test station configurations (DIS 600i and DIS 800i).
• Independent low-vibration external digital heater/circulator to maintain constant bath temperature and minimise vibration.
• Easy-clean Viton® membrane-sealed low-evaporation lids supplied as standard; leak-proof removable water bath with drain tap.
• Robust metal case with advanced corrosion protective coating; vessels serial-numbered as standard.
• Convenient screw-in baskets/paddles and quick-release baskets for rapid sample loading/unloading and method change.
• Extensive data reporting/output options: RS232, USB-A and USB-B; option to automate and remotely control systems.
• Wide speed/stroke range to accommodate a broad scope of methods and adjustable stroke-frequency control for accelerated or high-sensitivity testing.

Models

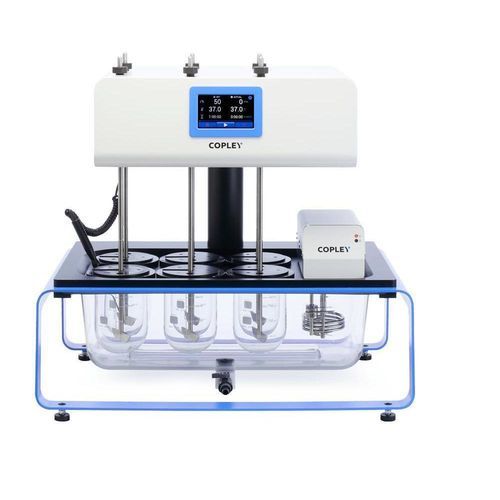

• DIS 600i — compact benchtop six-station dissolution tester designed for R&D and QC environments. Accepts baskets, paddles or rotating cylinders as described in the Pharmacopoeias.
• DIS 800i — larger-format eight-station dissolution tester providing enhanced access/visibility to the sampling area; likewise accepts compendial baskets, paddles and rotating cylinders.

DIS 600i – Technical Data (table)
Catalogue Number: 1336
Pharmacopoeial Compliance: Ph. Eur. 2.9.3 and 2.9.4; USP <711> and <724>
Ph. Eur. and USP Test Methods Supported: 1, 2, 5, 6
Number of Stirred Vessels: 6
Heater Type: Low vibration independent external digital heater/circulator
Unit Dimensions (w x d x h): 728 x 495 x 689 mm (unit); 260 x 330 x 150 mm (heater)

DIS 800i – Technical Data (table)
Catalogue Number: 1338
Pharmacopoeial Compliance: Ph. Eur. 2.9.3 and 2.9.4; USP <711> and <724>
Number of Stirred Vessels: 8
Heater Type: Low vibration independent external digital heater/circulator
Unit Dimensions (w x d x h): 728 x 495 x 689 mm (without heater); 260 x 330 x 150 mm (heater)

Accessories & Related Options

• Standard vessels and easy-clean Viton® membrane-sealed low-evaporation lids (included as standard); UV-resistant vessels available.
• EMC Ultra-Precision vessels for higher dimensional tolerance and enhanced accuracy.
• Automatic Tablet Drop system for simultaneous tablet ejection and synchronised sampling.
• Sampling probes (manual and automated) and a range of baskets (including special/coarse and suppository baskets), paddles and rotating cylinders; small-volume conversion kits (100 mL, 200 mL) available.
• Performance verification testing (PVT) standards and calibration/qualification toolkits (IQ/OQ/PQ documentation packages available).

Notes
Systems include 'Easy-Centre' centring for precise vessel positioning, maximum fill line indicators, serial-numbered vessels, and quick-release baskets to improve throughput and cleaning efficiency.

Technical Specifications

• Series name: DISi Series (models: DIS 600i — 6 vessels; DIS 800i — 8 vessels).
• Compliance: Ph. Eur. 2.9.3 / 2.9.4 and USP <711> / <724>.
• Supported pharmacopoeial test methods: 1, 2, 5, 6 (model dependent).
• Temperature control and measurement: PT100 temperature probe, passcode-protected single-point electronic temperature calibration, latest calibration information stored and exportable.
• Heating: Independent external digital heater/circulator (low vibration).
• Bath: Easily removable leak-proof water bath with convenient drain tap; Viton® membrane-sealed low-evaporation lids included.
• Drive & consumables: Precision-ground shafts accepting baskets/paddles/rotating cylinders; screw-in baskets/paddles; quick-release baskets; automatic tablet drop option.
• Data & connectivity: RS232, USB A, USB B outputs; automation and remote control options available.
• Physical dimensions (example): DIS units approx. 728 x 495 x 689 mm (unit); heater approx. 260 x 330 x 150 mm.
• Typical catalogue numbers: DIS 600i — 1336; DIS 800i — 1338.
