Thickness tester 700

for tabletsfor productionindustrial

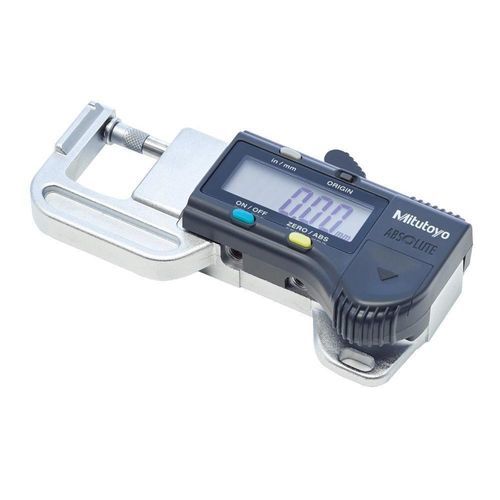

Overview A compact, pocket-sized thickness tester designed for quick, one-handed measurements on the production/compression floor. Operation is straightforward: switch on, zero the gauge, select units, place the tablet between the jaws, release the jaw and read the value on the clear LCD display. Ideal for fast routine checks and process control.

Key features

• Pocket-sized, portable design for one-handed use
• Clear LCD display for direct reading
• Selectable units: mm and inches
• Simple operation: switch on, zero, insert sample, release jaw, read measurement

Measurement modes

• Direct: Actual thickness
• Comparator: +/- Deviation from norm

Technical specifications

• Catalogue Number: 4903
• Maximum tablet diameter accommodated: 12 mm
• Accuracy / resolution: 0.01 mm
• Measurement units: mm and inches
• Measurement modes: Direct (actual thickness) and Comparator (deviation from norm)
• Data output / display: Analogue / LCD display (direct reading)
