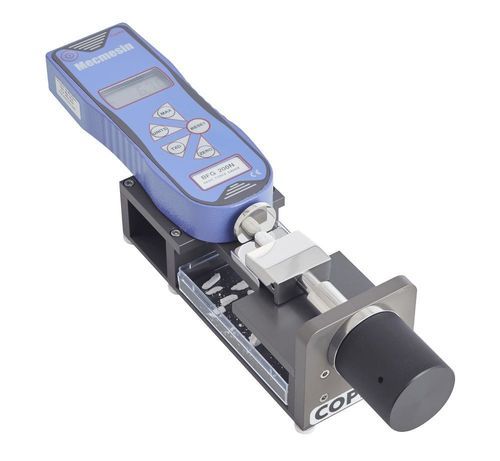

Universal hardness tester TH3

manualportabletablet

Description
Ideal for production-area spot checks of compression/breaking force, the TH3 series is a portable, simple-to-use tablet hardness tester. Load is applied via a multi-turn, low-friction hand wheel to give a controlled breaking force displayed on a clear LCD. The instrument offers multiple data output options and does not require routine calibration for normal production use.

TH3/200
Portable unit for rapid production checks with debris collection tray and clear LCD display; suitable for tablets up to 30 mm diameter.

TH3/200 - Specifications (table)
Catalogue Number: 7801
Pharmacopoeial Compliance: Ph. Eur. 2.9.8; USP (1217)
Max. Tablet Diameter: 30 mm
Force Range: 0–200 N (±0.04 N)
Statistics Reporting: No
Batch Testing: No
Portable: Yes
Unit Dimensions (w x d x h): 82 x 380 x 90 mm

TH3/500
Same portable, easy-to-use design as the TH3/200 with a higher maximum force range for tablets requiring greater breaking force testing.

TH3/500 - Specifications (table)
Catalogue Number: 7802
Pharmacopoeial Compliance: Ph. Eur. 2.9.8; USP (1217)
Max. Tablet Diameter: 30 mm
Force Range: 0–500 N (±0.1 N)
Statistics Reporting: No
Batch Testing: No
Portable: Yes

Key TH3 Series Highlights

• Tablet hardness testing with easy calibration verification
• Choice of force measurement unit (N, g, lb, oz)
• Portable unit with debris collection tray
• Clear LCD display
• Suitable for tablets less than 30 mm diameter
• Extensive data reporting/output options: RS-232, Mitutoyo and analogue output

Data output and connectivity

• RS-232 data output
• Mitutoyo-compatible output
• Analogue data output

Technical specifications

• Series: TH3
• Versions: TH3/200 (max 200 N) and TH3/500 (max 500 N)
• Catalogue numbers: TH3/200 = 7801; TH3/500 = 7802
• Pharmacopoeial compliance: Ph. Eur. 2.9.8; USP (1217)
• Maximum tablet diameter accommodated: 30 mm
• Force measurement ranges: 0–200 N (±0.04 N) and 0–500 N (±0.1 N)
• Portable design with debris collection tray
• Clear LCD readout
• Statistics and batch testing: not provided on these basic portable variants
• Typical unit dimensions (TH3/200): 82 x 380 x 90 mm
• Extensive output options for data capture and integration (RS-232, Mitutoyo, analogue)
