Performance tester SDT 1000

operationalsensorfor medical devices

Overview

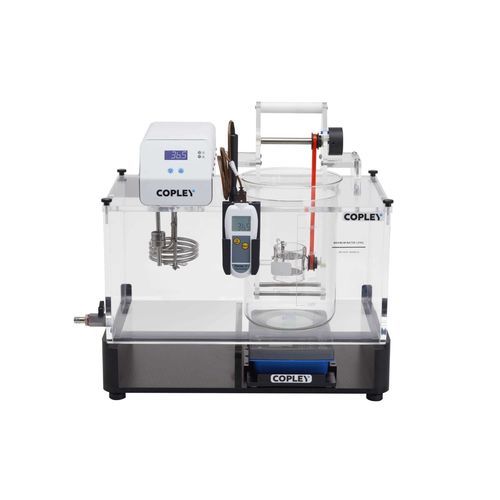

Copley Scientific offers the SDT 1000, a suppository disintegration tester designed in accordance with the specifications laid down in Ph. Eur. Test 2.9.2. The SDT 1000 is a single-unit tester optimised for assessing the disintegration properties of suppositories and pessaries and, with the appropriate attachment, for measuring the softening time of lipophilic suppositories (per Ph. Eur. 2.9.22.-2). The instrument uses a simple manual inversion system controlled by a water-resistant pulley. Test parameters such as water bath temperature and stirrer speed are set via touch-key interfaces.

Key features

• Pharmacopoeial compliance with Ph. Eur. Test 2.9.2 and (with suitable attachment) Ph. Eur. 2.9.22.-2
• Single-unit tester: assesses disintegration and, with the softening-time attachment, softening time
• Manual sample inversion controlled by a water-resistant pulley system
• Touch-key interfaces for easy setting of water bath temperature and stirrer speed
• Easy-remove components to simplify cleaning

Functional components & user benefits

• Integrated PT100 probe for precision temperature control and measurement
• Manual sample inversion offers users ultimate control and flexibility
• Powerful magnetic stirrer ensures consistent mixing during testing
• Independent digital heater/circulator maintains a constant temperature and minimises vibration
• Small unit footprint saves benchtop space

Related accessory
Suppository Test Softening Time Attachment: a special attachment used in place of the disintegration test station (used with appropriate beaker and glass rods) to measure softening time of lipophilic suppositories in accordance with Ph. Eur. 2.9.22.-2.

Technical table
Catalogue Number: 1704
Pharmacopoeial Compliance: Ph. Eur. Test 2.9.2 and 2.9.22.-2 (with suitable attachments)
No. Test Stations: Disintegration: 1 Softening Time: Up to 3
Sample Inversion: Manual
Unit Dimensions (w x d x h): 510 x 280 x 500 mm

Technical specifications

• Catalogue Number: 1704
• Pharmacopoeial compliance: Ph. Eur. Test 2.9.2; Ph. Eur. 2.9.22.-2 for softening time (with attachment)
• Number of test stations: Disintegration: 1; Softening time: up to 3 (with attachments)
• Sample inversion: Manual (water‑resistant pulley system)
• Temperature control: Integrated PT100 probe; independent digital heater/circulator
• Mixing: Powerful magnetic stirrer with adjustable speed
• User interface: Touch-key controls for water bath temperature and stirrer speed
• Unit dimensions (w x d x h): 510 x 280 x 500 mm
• Optimised for testing suppositories, pessaries and (with attachment) measuring softening time of lipophilic suppositories
