Insulation testing system HDT 1000

performancequalificationoperational

Overview
Copley Scientific offers the HDT Series designed for the assessment of drug release from semisolid formulations. The range includes dry-heat systems and water-jacketed heating systems.

HDT 1000

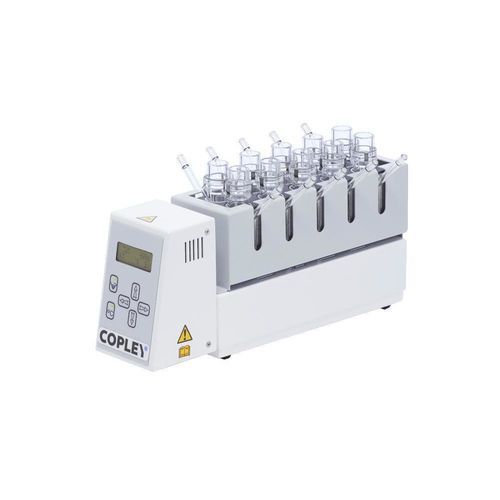

The compact HDT 1000 vertical diffusion cell tester features a precision dry heating block and integrated magnetic stirrers. The design removes the tubing complexity associated with water-jacketed systems and supports endpoint, discrete manual sampling or fully automatic sampling. A dedicated magnetic stirrer is mounted beneath each station to ensure thorough mixing during testing.

Key Highlights

• USP compliant (meets USP <1724>)
• Dry heating block eliminates tubing and complications of water-jacketed systems
• Precision control over test parameters
• Cell clamps simplify cell preparation
• Integrated magnetic stirrers ensure consistent mixing
• Very small benchtop footprint (smaller than an A4 sheet)

Product Features

• User-friendly membrane keypad with backlit LCD display for test parameters
• Accommodates up to 10 vertical diffusion cells per run
• Easy-access sampling ports for convenient sampling
• Quick-release baskets for rapid loading, unloading and cleaning
• Insulation to support temperature stability
• Dry heating block removes need for water-jacketed cells
• Independent digital heating per block
• Compact benchtop footprint

Catalogue & Technical Table
Catalogue Number: 7290
Pharmacopoeial Compliance: USP <1724>
Cell Capacity: Up to 10 vertical diffusion cells
Cell Types Supported: B, C and Skin
Heating System: Dry heating block
Sampling Technique Compatibility: Endpoint, discrete manual and fully automatic sampling
Unit Dimensions (W x D x H): 80 x 325 x 145 mm

Technical specifications

• Catalogue number: 7290
• Pharmacopoeial compliance: USP <1724>
• Cell capacity: up to 10 vertical diffusion cells
• Supported cell types: B, C and Skin
• Heating system: dry heating block (precision dry heating)
• Sampling compatibility: endpoint, discrete manual and fully automatic sampling
• Integrated magnetic stirrers: one stirrer per station for thorough mixing
• Unit dimensions (W x D x H): 80 x 325 x 145 mm
• Benchtop footprint: smaller than A4
