Mass tester JV 120i

densitypowderbenchtop

Overview
Copley JVi Series provides a laboratory solution for routine measurement of tapped density of powders, granules and similar bulk solids. The series supports all three methods specified in the European Pharmacopoeia and USP for tapped density and delivers integrated calculations including bulk density, tapped density, Hausner ratio and compressibility index.

Product variants

• JV 120i — single-station tapped density system supporting Methods 1, 2 and 3.
• JV 220i — double-station tapped density system supporting Methods 1, 2 and 3 (for some test methods only one station should be used at a time).

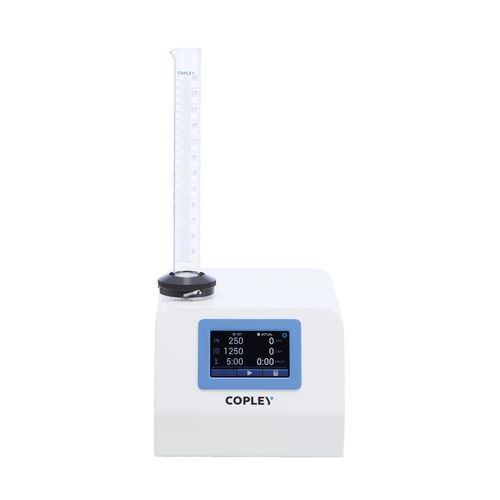

JV 120i — Details
Single-station system for routine tapped density testing in laboratory and QC environments. Supports all associated attachments for Methods 1, 2 and 3 and includes automated weighing functionality for efficient sample processing. Touchscreen control displays set and actual test parameters and test progress.

JV 120i — Specs (table)
Catalogue Number: 1691
Pharmacopoeial Compliance: Ph. Eur. 2.9.34; USP <616>
Eur. Ph. and USP Test Methods Supported: 1, 2, 3
Number of Test Stations: 1
Unit Dimensions (w x d x h): 260 x 347 x 562 mm (with 250 mL cylinder)

JV 220i — Details
Two-station configuration offering parallel testing capability while retaining the same core functionality as the JV 120i. Compatible with optional automation modules such as the Powder Testing Assistant (PTA) and Powder Testing Workstation (PTW) to extend powder flow and density test techniques.

JV 220i — Specs (table)
Catalogue Number: 1692
Pharmacopoeial Compliance: Ph. Eur. 2.9.34; USP <616>
Eur. Ph. and USP Test Methods Supported: 1*, 2, 3
*Only one station should be used at a time for Method 1
Number of Test Stations: 2
Unit Dimensions (w x d x h): 260 x 347 x 562 mm (with 250 mL cylinders)

Key JVi Series Highlights

• Ph. Eur., USP and ASTM compliant for tapped density testing
• Intuitive touchscreen control with icon-based menu
• 3-in-1 capability: supports Methods 1, 2 and 3
• Integrated calculations: bulk density, tapped density, Hausner ratio, compressibility index
• Adjustable stroke frequency for varied sensitivity and accelerated testing
• Extensive data output options: RS232, USB A, USB B
• Available in one- and two-station configurations (JV 120i, JV 220i)
• Automated weighing function for precise results
• Durable metal case with corrosion-protective coating and compact benchtop footprint

Accessories and options

• Platforms to support different methods and cylinder sizes
• Measuring cylinders: 250 mL and 100 mL (spares); additional volumes: 50, 25, 10 and 5 mL
• Quick-release baskets and removable platforms for rapid sample handling
• Acoustic cabinet to reduce noise
• Label printer and other laboratory accessories available

Technical specifications

• Models: JV 120i (single-station) and JV 220i (double-station)
• Catalogue numbers: JV 120i = 1691; JV 220i = 1692
• Pharmacopoeial compliance: Ph. Eur. 2.9.34; USP <616>
• Test methods supported: Eur. Ph. & USP Methods 1, 2 and 3 (JV 220i: Method 1 requires single-station use)
• Number of test stations: 1 (JV 120i) or 2 (JV 220i)
• Unit dimensions (w x d x h): 260 x 347 x 562 mm (with 250 mL cylinder/cylinders)
• Integrated calculations: bulk density, tapped density, Hausner ratio, compressibility index
• User interface: touchscreen displaying set vs actual parameters and test progress
• Automated weighing function available
• Adjustable stroke frequency for sensitivity and accelerated testing
• Data outputs: RS232, USB A, USB B
• Optional automation: compatible with PTA 100i and PTW for extended powder testing
• Materials/finish: metal case with corrosion-protective coating; compact benchtop footprint
