Glass plate vacuum lifter M series

for flat partsfor sheet metalfor plates

Product overview

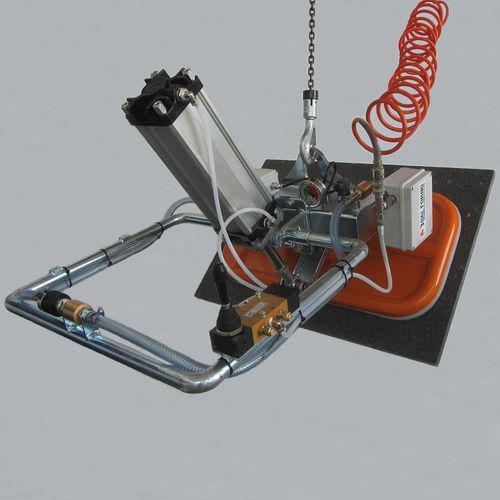

Fast and simple handling unit designed for continuous, heavy-duty under-the-hook lifting. Compact construction with vacuum reservoir, vacuum gauge and built-on safety devices including acoustic and visual alarms. Flexible, wear-resistant rubber sealing enables gripping of multiple surface finishes (raw, polished, honed, flamed, bush-hammered, sand-blasted, etc.).

Application
Suitable for lifting solid, non-porous, flat-surfaced materials such as cut-to-size panels, tiles, strips, stairs, small slabs, metal plates and window glass.

Features

• Construction in light alloys and galvanized steel; aluminium casting pad for corrosion resistance
• Fast, tool-free replacement of the rubber sealing ring
• Pneumatic tilting 0°–90° to pick and place horizontally and vertically
• Pivot axis positioned close to the pad to facilitate vertical placement
• Adjustable handle inclination for operator comfort and control
• Detachable, rechargeable vacuum-leakage alarm with buzzer and warning lights activated by a vacuum switch; separate battery charger
• One-way valves to maintain vacuum in case of hose cuts or loss of vacuum source
• ON/OFF sliding valve with locking device to prevent accidental release
• Compliant with the EU Machinery Directive (CE marking)

Feeding options
Vacuum can be generated by an electric vacuum pump or by a compressed-air vacuum generator (Venturi). Typical supply: electric vacuum pump + connection hose + vacuum suction pad. Optional configurations: single-phase or DC electric motors for mobile installations (forklifts, hydraulic cranes) or internal combustion engines. Units can be tailored to customer requirements.

Documents available
Technical data sheets, suction pad configuration drawings and installation/operation instructions are available for this product.

Technical specifications

• Series: M series
• Capacity: 100–3000 kg (model dependent)
• Suitable materials: solid, non-porous, flat-surfaced panels, tiles, slabs, metal plates, glass
• Construction: light alloy materials and galvanized steel; aluminium casting pad
• Sealing: flexible, wear‑resistant rubber sealing for multiple finishes
• Tilt: pneumatic 0°–90°
• Pivot axis: close to pad for easier vertical positioning
• Handle: adjustable inclination
• Safety: vacuum reservoir; vacuum gauge; detachable rechargeable alarm with buzzer and warning lights; one-way valves; ON/OFF sliding valve with locking
• Power/vacuum generation: electric vacuum pump or compressed-air Venturi; optional single-phase, DC or combustion engines
• Standards: EU Machinery Directive (CE)
• Example models: M 3570/AC/P, M 5085/AC/P
