Glass plate vacuum lifter S series

for flat partsfor sheet metalfor plates

Overview

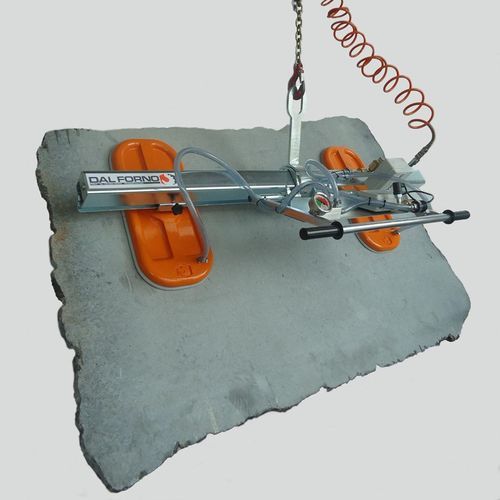

S series two-pad vacuum lifter with manual tilting. Capacity: 250–1000 kg. Suitable for lifting solid, non-porous, flat-surfaced materials such as cut-to-size panels, tiles, strips, stairs, small slabs, metal plates and window glass.

General description
Compact, robust design for continuous industrial use. Designed as an under-the-hook handling device to complement cranes and forklifts. Features include an integrated vacuum reservoir, safety devices with acoustic and visual alarms, and a vacuum gauge. Flexible, durable rubber sealing adapts to multiple surface finishes (raw, polished, honed, flamed, bush-hammered, sand-blasted).

Features

• Light alloy and galvanized steel construction; cast aluminium pads for corrosion resistance.
• Quick and easy replacement of the rubber sealing ring.
• Manual tilting range 0°–90° to handle materials horizontally and vertically.
• Pivot axis located close to the pad for simplified vertical positioning.
• Adjustable maneuvering handle inclination.
• Detachable rechargeable vacuum leakage alarm with buzzer and warning lights, activated by a vacuum switch; separate charger supplied.
• Non-return valves to preserve vacuum in case of hose damage or power loss.
• ON/OFF sliding valve with locking device to prevent accidental release.
• Built in compliance with the CE Machinery Directive.

Feeding options and vacuum generation
Vacuum generation via electric vacuum pump or Venturi vacuum generator (compressed air). Typical configuration: electric vacuum pump + connecting hose + suction pads. Optional pumps with single-phase or DC motors (for forklifts or hydraulic cranes) or internal combustion engines available for special applications.

Downloads
Technical data sheet and operating instructions available in downloadable PDF format.

Technical specifications

• Series: S series (two-pad configuration)
• Capacity range: 250 kg to 1000 kg
• Suitable materials: solid, non-porous, flat-surfaced materials (panels, tiles, strips, stairs, small slabs, metal plates, glass)
• Construction materials: light alloys, galvanized steel; cast aluminium pads
• Sealing: replaceable flexible rubber ring
• Tilting: manual 0°–90°
• Safety: vacuum reservoir, vacuum gauge, acoustic and visual alarms, non-return valves, locking ON/OFF valve
• Alarm: detachable rechargeable vacuum leakage alarm with buzzer and lights; separate charger
• Feeding: electric pumps or Venturi generators; optional DC or internal combustion engines
• Compliance: CE Machinery Directive
