Glass plate vacuum lifter L series

for flat partsfor sheet metalfor plates

Overview

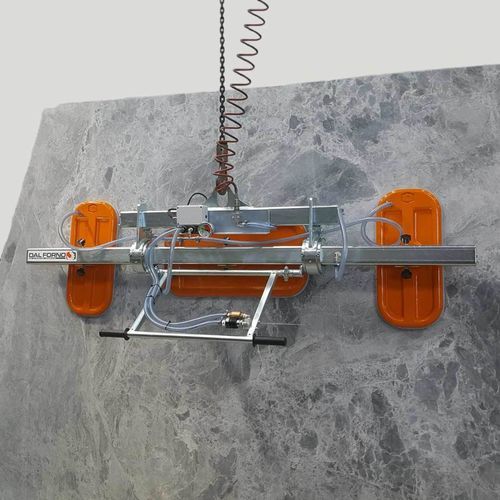

Three-pad vacuum lifter. Capacity: 500 to 1500 kg. Suitable for lifting solid, non-porous, flat-surfaced materials such as cut-to-size panels, tiles, strips, stairs, small slabs, metal plates and window glass.

Description
Fast and simple handling unit with compact, sturdy construction, suitable for continuous heavy-duty use. Ideal as an under-the-hook lifting device and a complement to standard lifting equipment. Equipped with a vacuum reservoir, safety devices with acoustic and visual alarms, and a vacuum gauge. A distinctive flexible rubber sealing ensures reliable grip on multiple surface finishes (raw, polished, honed, flamed, bush-hammered, sand blasted).

Features

• Manufactured with light alloy components and galvanized steel; aluminium casting pad — long-life and rustproof.
• Fast and easy replacement of the rubber sealing ring.
• Manual tilting from 0° to 90° to lift and place materials horizontally and vertically.
• Pivot axis located close to the pad to facilitate vertical positioning.
• Adjustable inclination of the manoeuvring handle.
• Rechargeable vacuum leakage alarm with buzzer and warning lights activated by a vacuum switch; includes separate battery charger.
• One-way valves to preserve vacuum in case of pipe cuts or vacuum loss.
• ON/OFF sliding valve with locking device to prevent accidental release.
• Complies with the EU Machinery Directive (CE marking).

Feeding / Vacuum generation options
The vacuum can be generated by an electric vacuum pump or by a compressed-air Venturi vacuum generator. Typical configuration: electric vacuum pump + connecting pipe + vacuum suction pad. For special applications, optional pumps with single-phase or DC motors (for forklift and hydraulic crane installation) or internal combustion engines can be supplied.

Available configurations and accessories
Multiple suction pad configurations are available to adapt the lifter to specific shapes and materials. Special bespoke units and pneumatic tilting versions can be supplied on request.

Technical specifications

• Series / Model family: L series.
• Capacity range: 500–1500 kg.
• Suitable materials: solid, non-porous, flat surfaces (panels, tiles, slabs, metal plates, glass, stairs, strips).
• Construction materials: light alloy components and galvanized steel; aluminium casting pad.
• Rubber sealing: flexible, durable; suitable for multiple surface finishes (raw, polished, honed, flamed, bush-hammered, sand blasted).
• Tilting: 0°–90° for horizontal and vertical handling.
• Pivot: axis positioned close to pad for easier vertical placement.
• Handle: adjustable inclination for manoeuvring.
• Safety: vacuum reservoir; acoustic and visual alarms; vacuum gauge; rechargeable vacuum leakage alarm with buzzer and warning lights; one-way valves; ON/OFF sliding valve with locking device.
• Vacuum sources: electric vacuum pump; compressed-air Venturi generator; optional single-phase, DC or internal combustion pumps.
