Metal sheet vacuum lifter X series

glass platefor flat partsfor plates

Product overview

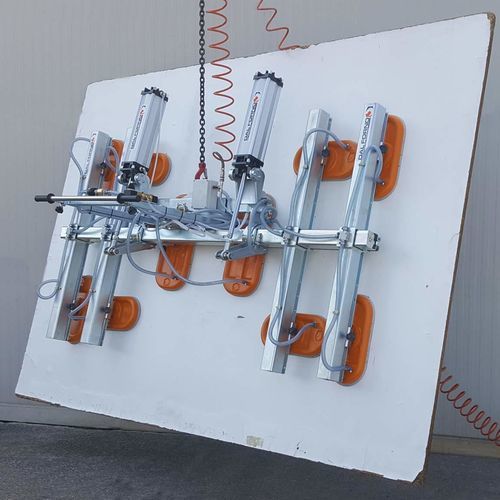

Ten-pad vacuum lifter X Series C for handling flat, non-porous solid materials with pneumatic tilting from 0° to 90°.

Series and capacity
X Series C capacity: 500–1500 kg.

Applications
Suitable for lifting solid, non-porous materials with flat surfaces: cut-to-size panels, tiles, strips, stairs, small slabs, metal plates, window glass and display glazing.

General description
Compact, robust under-hook handling unit designed for continuous and heavy-duty operation. Equipped with vacuum reservoir, vacuum gauge and safety devices with acoustic and visual alarms. Flexible, long-life rubber sealing provides reliable grip on various surface finishes (raw, polished, honed, flamed, bush-hammered, sand-blasted, etc.).

Features

• manufactured with light alloy materials and galvanized steel, aluminum casting pad — corrosion resistant;
• fast and easy replacement of the rubber sealing ring;
• tilting 0° to 90° for horizontal and vertical (upright) handling;
• pivoting axis positioned close to the pad to facilitate vertical placement;
• adjustable inclination of the manoeuvring handle;
• detachable, rechargeable vacuum-leakage alarm with buzzer and warning lights, activated by a vacuum switch; separate battery charger;
• one-direction valves to maintain vacuum in case of pipe cut or vacuum loss;
• ON/OFF sliding valve with locking device to prevent accidental release;
• designed in compliance with the CE Machine Directive.

Feeding options
Vacuum can be generated by an electric vacuum pump or by a compressed-air vacuum generator (Venturi). Typical supply: electric vacuum pump + connecting hose + vacuum suction pad. Electric pumps can be supplied single-phase, as DC motors (for installation on forklifts and hydraulic cranes) or as internal combustion engines for special applications.

Downloads
Technical data sheets and operating instructions are available for download as PDF documents.

Technical specifications

• Capacity: 500–1500 kg
• Pad configuration: ten pads (multiple suction pads)
• Materials: light alloy, galvanized steel, aluminum casting pads
• Sealing: flexible, long-life rubber sealing suitable for various finishes
• Tilting: 0°–90° (horizontal and vertical handling)
• Pivoting axis: close to pad for vertical positioning
• Controls: adjustable manoeuvring handle; ON/OFF sliding valve with locking device
• Safety: vacuum reservoir; detachable rechargeable vacuum-leakage alarm with buzzer and warning lights; vacuum gauge; one-direction valves
• Standards: CE Machine Directive compliant
• Typical supply: electric vacuum pump (single-phase, DC or internal combustion), connecting hose
