Cross vacuum lifter VX series

framefor marblefor plates

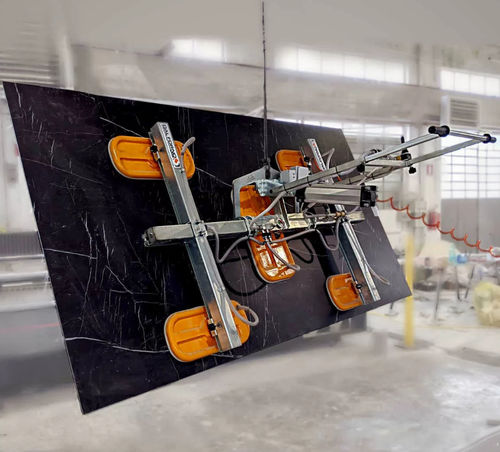

Product overview The VX series five-pad vacuum lifter is an air-powered suction gripper for handling large slabs and sheets. Suitable for marble, granite, fragile and precious stones (onyx), cement, ceramic, stoneware, porcelain in large formats, Laminam® Dekton® and other thin materials with large dimensions, and metal sheets. Capacity range: 250–1400 kg. Robust compact steel frame with vacuum reserve tank and adjustable sliding suction pads for precise positioning.

Features

• Pneumatic tilting 0°–90° using a single cylinder for horizontal and vertical handling
• Suction pads slide along cross beams and beams slide along main support for fingertip adjustment
• Light alloy components and galvanized steel; aluminum casting pad for corrosion resistance
• Optional non-marking white rubber plate for single pads
• Fast replacement of rubber sealing rings
• Detachable rechargeable vacuum leakage alarm with buzzer and warning lights activated by a vacuum switch; separate charger
• Check valves to maintain vacuum in case of pipe cuts or loss of vacuum
• ON/OFF sliding valve with locking device to prevent accidental release
• Designed and manufactured in compliance with the CE Machine Directive

Feeding options Vacuum can be generated by an electric vacuum pump or a compressed-air Venturi vacuum generator. Typical supply includes electric pump + connecting pipe + suction pads. Pumps can be supplied single-phase, DC (for forklifts and hydraulic cranes) or internal combustion for special applications; pump-mounted or remote installation possible.

Additional notes Multiple suction pad layouts are available to adapt the lifter to different workpieces and gripping areas. Special configurations and multi-pad units with manual tilting can be supplied on request.

Technical specifications

• Model/series: VX series
• Capacity range: 250–1400 kg
• Tilting: pneumatic 0°–90° (single cylinder)
• Frame: robust compact steel frame with vacuum reserve tank
• Suction pads: sliding on cross beams for adjustable positioning; optional non-marking white rubber plate
• Materials: light alloy components, galvanized steel, aluminum casting pad
• Vacuum system: electric pump or compressed-air Venturi generator; single-phase, DC or internal combustion pump options
• Safety: detachable/rechargeable vacuum leakage alarm with buzzer and lights; check valves; ON/OFF sliding valve with locking device
• Compliance: CE Machine Directive
