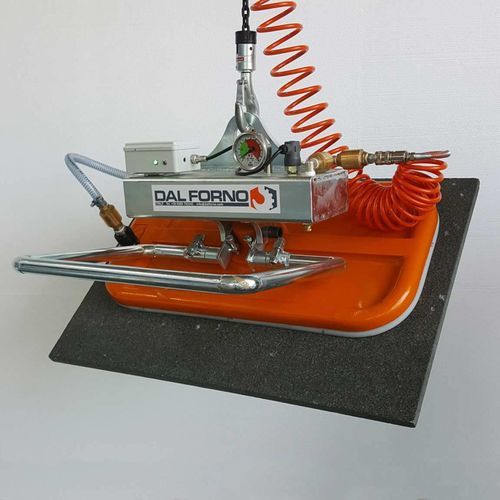

Sheet metal vacuum lifter M series

for concrete slabsfor stone slabsfor marble

Overview
This single-pad vacuum lifter is designed to lift dense materials such as marble, granite, concrete, refractories and composite panels, and is also suitable for sheet metal and other plate materials. Compact and built for continuous industrial use, the unit features a flexible replaceable rubber sealing ring that adapts to multiple surface finishes. Safety devices and ergonomic controls secure the load and protect the operator.

Applications

• Natural stone: marble, granite
• Concrete and refractory elements
• Composite panels and cladding
• Sheet metal and other plate materials

Key features

• Capacity range: 100 to 3000 kg
• Single (mono) suction pad design
• Manual tilting 0°–90° (pneumatic tilting option available)
• Light alloy components, galvanized steel structure, aluminum casting pad
• Fast and easy replacement of rubber sealing ring
• Pivot axis close to pad for easier vertical positioning
• Adjustable handle inclination for operator ergonomics
• Detachable rechargeable vacuum leakage alarm with buzzer and warning lights; charger included
• One-way valves to maintain vacuum in case of pipe damage or loss
• ON/OFF sliding valve with locking device to prevent accidental release
• Compliant with CE Machinery Directive

Vacuum generation and feeding options
Vacuum can be generated by an electric vacuum pump or a compressed-air Venturi generator. Typical configuration: electric vacuum pump + connecting pipe + suction pad. Pumps are available in single-phase, DC (for forklift or hydraulic crane mounting) or internal combustion engines for special applications. Multiple configurations are offered to match operational needs.

Notes
Custom configurations and special designs are available on request. Intended for heavy-duty industrial applications where secure gripping of dense materials is required.

Technical specifications

• Capacity: 100 ÷ 3000 kg
• Tilting: manual 0°–90° (pneumatic option available)
• Materials: light alloys, galvanized steel, aluminum casting pad
• Sealing: replaceable elastic rubber sealing suitable for all surface finishes
• Safety: vacuum reservoir, integrated safety devices, acoustic and visual alarms, vacuum gauge
• Vacuum retention: one-way valves to preserve vacuum in case of pipe cuts
• Control: ON/OFF sliding valve with locking device
• Alarm: detachable rechargeable vacuum leakage alarm with buzzer and warning lights; charger included
• Vacuum sources: electric vacuum pump, compressed-air Venturi generator; pump variants: single-phase, DC motor, internal combustion
• Standards: CE Machinery Directive conformity
