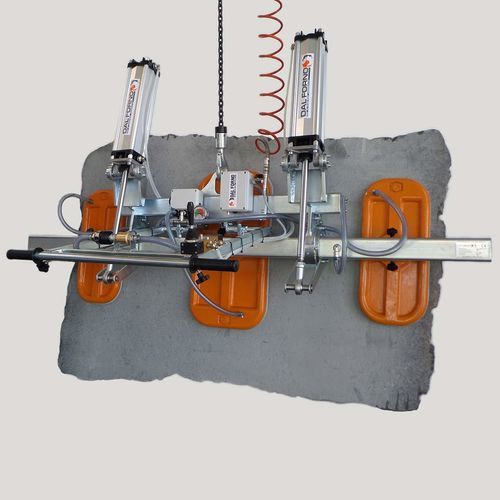

Glass plate vacuum lifter L series

for flat partsfor sheet metalfor plates

Product overview
Capacity: 500–1500 kg.
Suitable for lifting non-porous, flat-surfaced solids such as cut-to-size panels, tiles, strips, small slabs, metal plates and window glass.

General description
Compact, robust under-the-hook lifting unit designed for continuous heavy-duty use. Includes vacuum reservoir, vacuum gauge and built-in safety alarms (acoustic and visual). Flexible rubber sealing ensures effective grip on a variety of surface finishes (raw, polished, honed, flamed, bush-hammered, sand-blasted, etc.). Pneumatic tilting enables handling in both horizontal and vertical positions.

Features

• Construction: light alloy and galvanized steel; aluminum casting pad for corrosion resistance
• Quick replacement of rubber sealing ring
• Tilting range 0°–90° for lifting and laying materials horizontally and vertically
• Pivot axis close to pad for easier vertical positioning
• Adjustable inclination of the maneuvering handle
• Detachable, rechargeable vacuum-loss alarm with buzzer and warning lights activated by a vacuum switch; separate battery charger
• One-way valves to maintain vacuum in case of pipe damage or loss
• ON/OFF sliding valve with locking device to prevent accidental release
• Compliant with the CE Machinery Directive

Feeding options
Vacuum can be generated by an electric pump or a compressed-air vacuum generator (Venturi). Typical supply includes electric vacuum pump + connecting pipe + vacuum suction pad. Optional power units: single-phase electric motors, DC motors (for forklifts/hydraulic cranes) or internal combustion engines for special applications.

Notes
Multiple configurations and custom designs are available to meet specific application requirements. Special versions include manual-tilt three-pad lifters and tailored models on request.

Technical specifications

• Series: L series
• Capacity range: 500–1500 kg
• Suitable materials: non-porous, flat-surfaced solids (panels, tiles, strips, small slabs, metal plates, window glass)
• Construction materials: light alloy, galvanized steel, aluminum casting pad
• Tilting: pneumatic, 0°–90°
• Vacuum system: reservoir and vacuum gauge
• Safety systems: acoustic and visual alarms; detachable rechargeable alarm unit
• Valves: one-way vacuum-retaining valves; ON/OFF sliding valve with locking device
• Sealing: flexible, replaceable rubber sealing ring
• Maintenance: quick replacement of sealing ring
• Standards: CE Machinery Directive compliance
