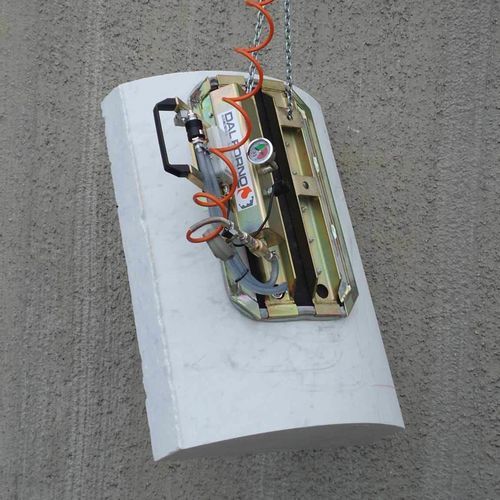

Cylindrical load vacuum lifter OMNIA series

verticalhorizontaladjustable

Overview
Flexible pad vacuum lifter. Capacity: 100 to 800 kg. Suitable for lifting column sectors, cylindrical shells, both concave and convex, polished or rough.

Product summary
The OMNIA is a patented high‑tech flexible suction pad with variable deformation designed for lifting and handling curvilinear products. Manufactured with composite materials and light alloys for flexibility, safety and durability. The sealing is a flexible, resistant rubber ring enabling reliable grip on a wide range of surface finishes (raw, polished, honed, flamed, bush‑hammered, sand blasted, etc.).

Features

• Construction: light alloy components, galvanized steel and aluminum casting pad — long service life and corrosion resistance.
• Fast and easy replacement of the rubber sealing ring.
• Tiltable 0°–90° for horizontal and vertical handling.
• Pivoting axis located close to the pad to facilitate vertical positioning.
• Adjustable inclination of the maneuvering handle.
• Detachable rechargeable vacuum alarm with buzzer and warning lights activated by a vacuum switch; separate battery charger.
• One‑way valves to retain vacuum in case of pipe cuts or vacuum loss.
• ON/OFF sliding control valve with locking device to prevent accidental release.
• Compliant with the EU Machinery Directive for CE marking.

Feeding / Vacuum generation
Vacuum can be generated by an electric vacuum pump or by a compressed‑air Venturi generator. Typical supply includes electric vacuum pump, connecting pipe and the suction pad. Options include single‑phase or DC motor pumps (for installation on forklifts or hydraulic cranes) and internal combustion engines for specific applications.

Configurations and models
Available model variants include OMNIA 300, OMNIA 300/AC, OMNIA 400 and OMNIA 800. Special configurations can be designed to meet specific application requirements.

Downloads
Technical data sheets, model configurations and installation instructions are available for download.

Technical specifications

• Denomination: OMNIA (flexible pad vacuum lifter).
• Capacity range: 100–800 kg (depending on model).
• Suitable for: column sectors, cylindrical shells, concave and convex shapes; compatible with multiple surface finishes.
• Materials: light alloys, galvanized steel, aluminum casting pad, composite pad materials.
• Sealing: flexible rubber sealing, fast replaceable.
• Tilt: 0°–90° for horizontal and vertical handling.
• Pivoting axis: close to the pad.
• Handle: adjustable inclination.
• Vacuum alarm: detachable, rechargeable, buzzer and warning lights, vacuum‑switch activated; separate charger.
• Safety valves: one‑way valves to maintain vacuum if piping is cut or vacuum lost.
• Control valve: ON/OFF sliding valve with locking device.
• Vacuum generation: electric pump or Venturi; options for single‑phase, DC‑driven pumps or combustion engines.
• Compliance: CE Machinery Directive (EU).
