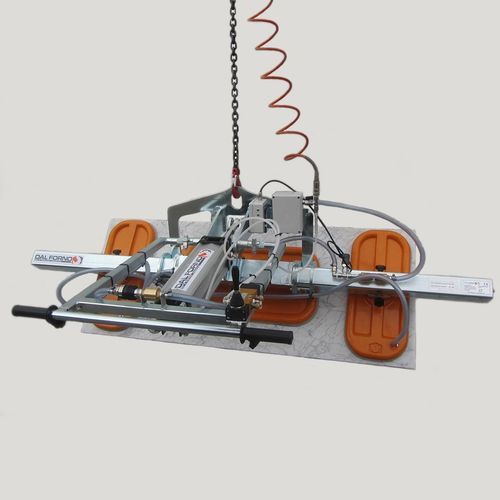

Metal sheet vacuum lifter VL series

glass platefor flat partsfor stone slabs

Overview
Stone vacuum lifter engineered for handling solid non-porous flat materials such as marble and granite panels, tiles, strips, stairs, small slabs, metal plates and window glass. Compact design suitable for continuous industrial use.

Series and Capacity
VL Series
Capacity: 400 to 1200 kg

Key advantages
Advanced vacuum handling solution with compact pneumatic tilting and configurable pad arrangement for precise and secure lifting.

Safety and sealing
Equipped with an on-board vacuum reservoir and safety devices including acoustic and visual alarms activated by a vacuum switch. Rubber sealing designed to grip a variety of surface finishes (polished, honed, flamed, bush-hammered, sandblasted, raw, etc.).

Suction pad configurations

• Multiple pad configurations available to match handling requirements; this unit supplied with a three-pad arrangement.

Operation and feeding options
Vacuum generation via electric vacuum pump or compressed-air Venturi generator. Typical supply: electric vacuum pump + connecting hose + vacuum suction pad. Pumps available in single-phase, DC (for forklift or hydraulic crane installation) or internal combustion variants for special applications.

Features

• Construction in light alloy components and galvanized steel; aluminum casting pad for corrosion resistance.
• Quick replacement of the rubber sealing ring.
• Tilting from 0° to 90° for horizontal and vertical handling.
• Pivot axis positioned close to the pad to facilitate vertical placement.
• Adjustable inclination of the handling grip.
• Detachable, rechargeable vacuum-leakage alarm with buzzer and warning lights, activated by vacuum switch; separate battery charger.
• One-way valves to retain vacuum in case of hose damage or vacuum loss.
• ON/OFF sliding valve with locking device to prevent accidental release.
• Designed and manufactured in compliance with the CE Machine Directive.

Usage and applications
Intended for safe lifting and precise placement of stone panels (marble, granite), tiles, small slabs, metal plates and glass in industrial and construction environments.

Technical specifications

• Series: VL
• Capacity range: 400 - 1200 kg
• Tilting range: 0° to 90°
• Vacuum safety: vacuum reservoir plus acoustic and visual alarms
• Sealing: flexible, robust rubber sealing for multiple surface finishes
• Materials: light alloy components, galvanized steel, aluminum casting pads
• Alarm: detachable rechargeable vacuum leakage alarm with buzzer and warning lights; activated by vacuum switch; separate battery charger
• Valves: one-way valves for vacuum retention in case of hose damage/vacuum loss
• Control valve: ON/OFF sliding valve with locking device
• Feeding options: electric vacuum pump or compressed-air Venturi generator; pumps available in single-phase, DC or internal combustion variants
• Compliance: CE Machine Directive
