Gas rotary union DP-063112

for airfor compressed air16-passage

Description

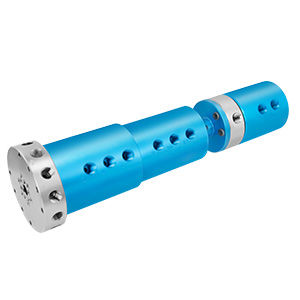

This 16-passage fluid rotary union (DP-063112) is designed to supply compressed air to a rotary table workholding system. Constructed in aluminum and optimized for indexing/low-speed rotary applications, it provides multiple gas lines through a compact rotating assembly.

Project Details

• Industry: Factory Automation, Machine Tool
• Media Type(s): Gas (air)
• Environment: Not specified
• Material: Aluminum
• Max. Pressure(s): 100 PSI [7 BAR]
• Max. Speed: Indexing (low-speed/indexing application)

Passage & Dimensional Details

• Number of Passages: 16
• Passage Size(s): .156" [4 mm]
• Through Bore: .375" [9.5 mm]
• Diameter: 2.937" [74.6 mm]
• Length: 11.214" [284.8 mm]

Features / Technical specifications

• Type: 16-passage fluid rotary union
• Function: Supply air to rotary table workholding system
• Media: Gas (air)
• Material: Aluminum construction
• Maximum pressure: 100 PSI [7 BAR]
• Maximum speed: Indexing (suitable for low-speed/indexing applications)
• Number of passages: 16
• Passage diameter: .156" [4 mm]
• Through bore diameter: .375" [9.5 mm]
• Overall diameter: 2.937" [74.6 mm]
• Overall length: 11.214" [284.8 mm]
