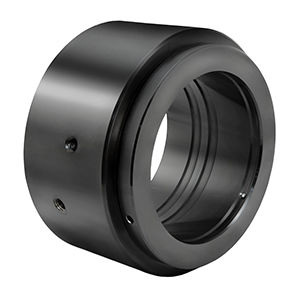

Vacuum rotary union HF-06722

for gas2-passageindustrial

Overview
2-pass rotary union designed for grinding equipment used in automotive component manufacturing. Features a specialized seal and plating combination selected for abrasive glass slurry transfer and a shaft-mount design providing extended service life compared with the existing rotary union.

Project Specifications

• Industry: Factory Automation
• Media Type(s): Gas
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): Vacuum
• Max. Speed: 20 RPM
• Number of Passages: 2
• Passage Size(s): 0.250" [6.4 mm]
• Through Bore: 6.005" [152.5 mm]
• Diameter: 8.875" [225.4 mm]
• Length: 4.846" [123.1 mm]

Related Projects (summary of related attributes)

• Industry: Factory Automation
• Number of Passages: 2 Passages
• Passage Size Range: 0.250" - 0.374" [6.35 mm - 9.50 mm]
• Rotation Speed (RPM): 0 - 24 RPM
• Pressure: Vacuum
• Media: Gas
• Material: Carbon / Alloy Steel
• Thru Bore Range: 6.0" - 9.9" [152.4 mm - 251.5 mm]
• Environment: Indoor

Technical characteristics / Specifications

• Model / Project: HF-06722
• Configuration: 2 passages
• Passage size: 0.250" [6.4 mm]
• Through bore: 6.005" [152.5 mm]
• Outer diameter: 8.875" [225.4 mm]
• Length: 4.846" [123.1 mm]
• Max. rotational speed: 20 RPM
• Media handled: Gas (seal/plating selected with abrasive glass slurry in mind)
• Max. pressure rating: Vacuum
• Material construction: Carbon / Alloy Steel
• Design features: specialized seal and plating combination for abrasive media; shaft-mount design for extended service life
