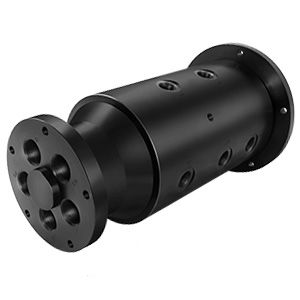

Gas rotary union KP-0620705
5-passagefor automationsteel

Gas rotary union - KP-0620705 - DSTI - Dynamic Sealing Technologies - 5-passage / for automation / steel
Gas rotary union - KP-0620705 - DSTI - Dynamic Sealing Technologies - 5-passage / for automation / steel
Add to favorites
Compare this product
Go to the DSTI - Dynamic Sealing Technologies website for more information

Characteristics

Medium
for gas
Number of passages
5-passage
Applications
for automation
Material
steel, carbon steel
Other characteristics
with seal, custom, flange, low-speed
Rotational speed

Max.: 3 rpm
(18.85 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 25 bar
(363 psi)

Min.: 0 bar
(0 psi)

Nominal size

31.8 mm
(1.252 in)

Description

Description
Five-passage rotary union designed to supply fuel gas to an oxygen furnace application. Direct-replacement footprint with a custom mounting flange and specialized fluorocarbon seals for gas service. Rated for indoor factory automation and low-speed rotary operation.

Technical details
  • Industry: Factory Automation
  • Media type: Gas (fuel gas)
  • Environment: Indoor
  • Material: Carbon / Alloy Steel
  • Maximum pressure: 365 PSI (25 BAR)
  • Maximum speed: 3 RPM
  • Number of passages: 5
  • Passage size: 1.250 in (31.8 mm)
  • Through bore: None
  • Diameter: 11.440 in (290.6 mm)
  • Length: 20.470 in (519.9 mm)


Materials and sealing
  • Body material: Carbon / alloy steel for structural integrity
  • Seals: Specialized fluorocarbon (FKM/Viton) seals selected for gas compatibility and temperature resistance


Installation and compatibility
  • Direct replacement design to fit existing equipment footprint
  • Custom mounting flange for integration with oxygen furnace assemblies
  • Intended for indoor factory automation environments and low rotational speeds (≤3 RPM)


Reference
  • Model / Project: KP-0620705
  • Application: Oxygen furnace fuel gas supply
