Water rotary union BM-05306

for gas6-passagefor heavy-duty applications

Description

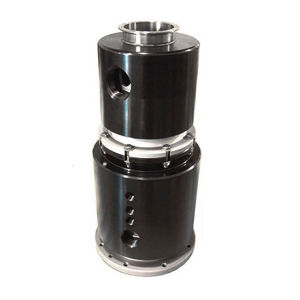

Custom 6‑passage rotary union engineered for a coal processing application to reduce sulfur impurities and emissions. The unit features a two‑part construction for rapid seal servicing and integrated crosstalk protection between passages.

Key Features

• Six independent fluid passages
• Two‑part design enabling quick access for seal replacement
• Crosstalk protection to minimize inter‑passage transfer
• Specifically configured to reduce sulfur impurities and emissions from coal processing streams

General Information

• Industry: Heavy Equipment; Factory Automation; Oil & Gas
• Media Type(s): Gas; Water; Other (project‑specific fluids)
• Environment: Outdoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): Vacuum, 300 PSI [21 BAR]
• Max. Speed: 2 RPM (project); related references up to 24 RPM

Passage & Dimensional Data

• Number of Passages: 6
• Passage Size(s): 3.500" [88.9 mm], 0.750" [19.1 mm], 0.500" [12.7 mm]
• Through Bore: 3.500" [88.9 mm]
• Outer Diameter: 10.500" [266.7 mm]
• Length: 21.276" [540.4 mm]

Related Project Data (from page)

• Rotation Speed (RPM) referenced: 0 - 24 RPM
• Pressure ranges referenced in related projects: Vacuum; 200 - 6,499 PSI [14 - 448 BAR]
• Options referenced: Crosstalk protection
• Materials referenced: Carbon / Alloy Steel

Technical Specifications

• Type: Custom 6‑passage rotary union (rotary fluid transfer assembly)
• Application: Coal processing aimed at reducing sulfur content and emissions
• Design: Two‑part construction for expedited seal servicing and reduced inter‑passage contamination
• Materials: Carbon / Alloy Steel suitable for heavy‑duty industrial environments
• Media Compatibility: Gas, Water, and other project‑specific fluids
• Max. Pressure (project): Vacuum to 300 PSI [21 BAR] (related references indicate capability to higher pressures)
• Max. Speed (project): 2 RPM (similar projects referenced up to 24 RPM)
• Passage geometry: Multiple passage sizes with a 3.500" [88.9 mm] thru‑bore
