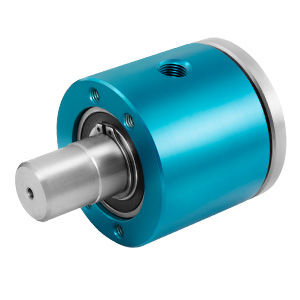

Vacuum rotary union HF-0890201

for gasfor rotary tablesaluminium

Description
Single-passage rotary union designed to supply vacuum service for a glass production application. Features include a specialized compact design and aluminum and stainless steel materials for a washdown environment.

Key information (from project specifications)

• Industry: Factory Automation
• Media Type(s): Gas
• Environment: Washdown
• Material: Aluminum, Stainless Steel
• Max. Pressure(s): Vacuum
• Max. Speed: 40 RPM

Physical / passage details

• Number of Passages: 1
• Passage Size(s): 0.250" (6.4 mm)
• Through Bore: None
• Diameter: 2.187" (55.5 mm)
• Length: 3.170" (80.5 mm)

Related project indicators

• Typical rotation speed category: 25 - 99 RPM
• Passage size category: 0.250" - 0.374" (6.35 mm - 9.50 mm)

Characteristics / Technical specifications

• Application: Vacuum service for glass production
• Design: Single passage, compact specialized design for the application
• Materials of construction: Aluminum and stainless steel for washdown compatibility
• Media handled: Gas (vacuum)
• Operating speed: up to 40 RPM (project-specific)
• Passage size: 0.250" (6.4 mm)
• Number of passages: 1
• Through bore: None
• External diameter: 2.187" (55.5 mm)
• Overall length: 3.170" (80.5 mm)
