Gas rotary union GN-05392
2-passagefor automationsteel

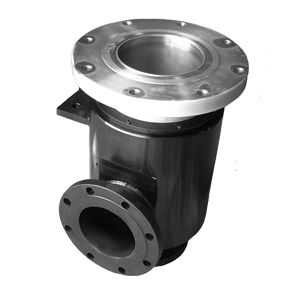

Gas rotary union - GN-05392 - DSTI - Dynamic Sealing Technologies - 2-passage / for automation / steel
Gas rotary union - GN-05392 - DSTI - Dynamic Sealing Technologies - 2-passage / for automation / steel
Add to favorites
Compare this product
Go to the DSTI - Dynamic Sealing Technologies website for more information

Characteristics

Medium
for gas
Number of passages
2-passage
Applications
for automation
Material
steel, carbon
Other characteristics
with seal, custom, flange
Rotational speed

Max.: 8 rpm
(50.27 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 5 psi

Min.: 0 psi

Nominal size

196.9 mm
(7.752 in)

Description

Description
Custom 2-passage rotary union designed for hazardous gas transfer applications. Features a customer-specified coaxial supply/return line configuration with 5" flow passages, a custom 16" shaft flange, and oil-filled weep channels for seal lubrication and leak protection.

Project details
  • Industry: Factory Automation
  • Media Type(s): Gas
  • Environment: (not specified)
  • Material: Carbon / Alloy Steel
  • Max. Pressure(s): 5 PSI [0 BAR]
  • Max. Speed: 8 RPM
  • Number of Passages: 2
  • Passage Size(s): 7.750" [196.9 mm] (page text also references 5" flow passages)
  • Through Bore: None
  • Diameter: 16.000" [406.4 mm]
  • Length: 23.300" [591.8 mm]

Related notes
  • Custom coaxial supply/return line configuration
  • Custom 16" shaft flange
  • Oil-filled weep channels for seal lubrication and leak protection

Technical specifications
  • Industry: Factory Automation
  • Media: Gas
  • Material: Carbon / Alloy Steel
  • Max Pressure: 5 PSI [0 BAR]
  • Max Speed: 8 RPM
  • Number of Passages: 2
  • Passage Size(s): 7.750" [196.9 mm] (page text also references 5" flow passages)
  • Through Bore: None
  • Diameter: 16.000" [406.4 mm]
  • Length: 23.300" [591.8 mm]
  • Features: coaxial supply/return, custom shaft flange, oil-filled weep channels for seal lubrication/leak protection
