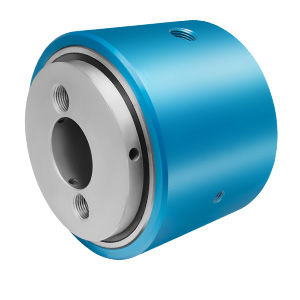

Gas rotary union QB-1060402

for airfor compressed air2-passage

Overview
2-passage rotary union designed to provide compressed air to a rotating service platform used by Formula One pit crews. Intended for indoor factory-automation environments. Aluminum construction with a 2.000" through bore allows routing of hoses or cables through the rotating axis.

Specifications

• Industry: Factory Automation
• Media Type(s): Gas (air)
• Environment: Indoor
• Material: Aluminum
• Max. Pressure: 130 PSI [9 BAR]
• Max. Speed: 10 RPM
• Number of Passages: 2
• Passage Size: 0.500" [12.7 mm]
• Through Bore: 2.000" [50.8 mm]
• Diameter: 6.440" [163.6 mm]
• Length: 4.980" [126.5 mm]

Related (context / typical ranges shown on page)

• Related Industry: Factory Automation
• Typical # of Passages: 2 Passages
• Passage Size Range: 0.500" - 0.749" [12.70 mm - 19.02 mm]
• Rotation Speed (RPM) Range: 0 - 24 RPM
• Pressure Range (PSI): 0 - 199 PSI [0 - 14 BAR]
• Media: Gas (air)
• Material: Aluminum
• Thru Bore Range: 1.0" - 2.9" [25.4 mm - 73.7 mm]
• Environment: Indoor

Technical features

• Type: 2-passage rotary union for gases (air)
• Material: Aluminum construction
• Maximum pressure rating: 130 PSI (9 BAR)
• Maximum rotational speed: 10 RPM
• Passage size: 0.500" (12.7 mm)
• Through bore: 2.000" (50.8 mm)
• Overall diameter: 6.440" (163.6 mm)
• Length: 4.980" (126.5 mm)
• Intended environment: Indoor use
• Typical application: Provide air to a rotating service platform (Formula One crew servicing)
