Gas rotary union NJ-10051

for automationcarbon steelhigh-speed

Overview

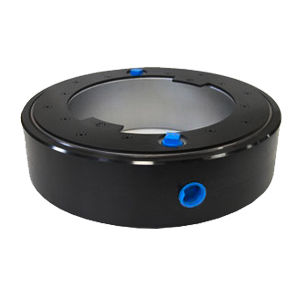

Single-passage rotary union designed for a major OEM tire manufacturing application. Features a compact design and specialized seals for high speed service.

Project Details

• Industry: Factory Automation
• Media Type(s): Gas
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): 100 PSI [7 BAR]
• Max. Speed: 180 RPM

Mechanical Dimensions & Passages

• Number of Passages: 1
• Passage Size(s): .500" [12.7 mm]
• Through Bore: 8.375" [212.7 mm]
• Diameter: 12.875" [327 mm]
• Length: 3.482" [88.4 mm]

Related Project Attributes

• Rotation Speed Category: 100 RPM & Over
• Pressure Category: 0 - 199 PSI [0 - 14 BAR]
• Thru Bore Range: 6.0" - 9.9" [152.4 mm - 251.5 mm]

Technical specifications

• Model / Project Code: NJ-10051
• Type: Single passage rotary union
• Intended Application: Tire manufacturing OEM application
• Media: Gas
• Materials: Carbon / Alloy Steel
• Maximum Operating Pressure: 100 PSI (≈7 BAR)
• Maximum Rotational Speed: 180 RPM
• Passage Count: 1
• Passage Size: 0.500" (12.7 mm)
• Through Bore (ID): 8.375" (212.7 mm)
• Outer Diameter: 12.875" (327 mm)
• Overall Length: 3.482" (88.4 mm)
