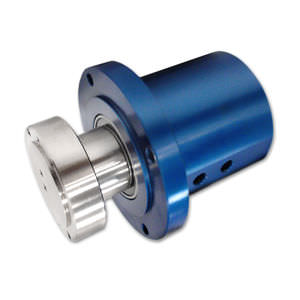

Gas rotary union PT-05212

2-passagealuminiumcustom

Description
Custom 2-passage rotary union designed for integration with a pneumatic gripper assembly. The unit features a specialized flange for direct mounting to customer equipment and is optimized for gas media in indoor factory automation environments. Operational limits: max. pressure 120 PSI [8 BAR], max. speed 45 RPM.

Applications

• Factory automation — end-of-arm tooling, pneumatic grippers
• Machine integration where compact, dual-channel rotary feed-throughs are required

General

• Industry: Factory Automation
• Media Type(s): Gas
• Environment: Indoor
• Material: Aluminum
• Max. Pressure(s): 120 PSI [8 BAR]
• Max. Speed: 45 RPM

Mechanical details

• Number of Passages: 2
• Passage Size(s): 0.156" [4 mm]
• Through Bore: None
• Diameter: 4.331" [110 mm]
• Length: 6.234" [158.3 mm]

Mounting & compatibility

• Specialized flange for direct mounting to customer equipment
• Ports compatible with 4 mm pneumatic tubing
• No through bore; verify shaft and sealing requirements for integration

Ordering information

• Model: PT-05212
• Custom project — confirm flange interface and installation requirements with supplier
