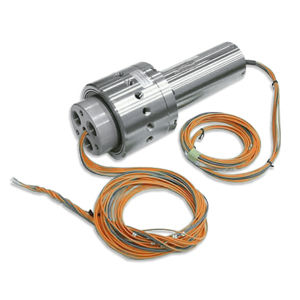

Gas rotary union QB-05951

industrialfor filling applicationsfor automation

Description
Single-passage rotary union engineered for aerosol can filling machines. Integrates an explosion-proof electrical slip ring certified for hazardous environments. Designed for gas media and indoor industrial installations. Machined stainless-steel construction and low-speed balancing ensure reliable operation in filling applications.

Application

• Industry: Factory Automation
• Media: Gas
• Environment: Indoor
• Typical use: Aerosol can filling lines

Mechanical / Physical Details

• Material: Stainless Steel
• Number of passages: 1
• Passage size: 0.750" [19.1 mm]
• Through bore: 0.500" [12.7 mm]
• Diameter: 5.500" [139.7 mm]
• Length: 10.500" [266.7 mm]

Performance

• Maximum pressure: 100 PSI [7 BAR]
• Maximum speed: 30 RPM

Key Features

• Single-passage design adapted for aerosol can filling machinery
• Integrated explosion-proof electrical slip ring rated for hazardous environments
• Stainless-steel construction suitable for industrial filling lines

Related Information

• Related industry: Factory Automation
• Options commonly specified: Slip ring integration, custom porting

Technical specifications

• Industry: Factory Automation
• Media Type(s): Gas
• Environment: Indoor
• Material: Stainless Steel
• Max. Pressure(s): 100 PSI [7 BAR]
• Max. Speed: 30 RPM
• Number of Passages: 1
• Passage Size(s): 0.750" [19.1 mm]
• Through Bore: 0.500" [12.7 mm]
• Diameter: 5.500" [139.7 mm]
• Length: 10.500" [266.7 mm]
• Notable feature: Explosion-proof integrated electrical slip ring certified for hazardous environments
