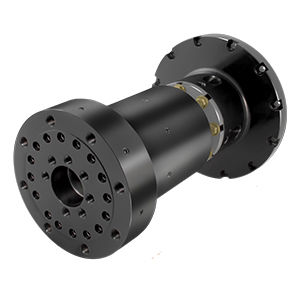

Oil rotary union XJ-0810008

for gasfor air8-passage

Overview
Rotary union XJ-0810008 designed to supply grease and air for crusher/pulverizer applications. The unit provides eight separate passages and a customer-specified flange mount for direct equipment integration. The design permits maintenance during operation to avoid unscheduled downtime.

Specifications

• Industry: Heavy Equipment; Factory Automation
• Media Type(s): Gas
• Environment: Indoor
• Material: Carbon / Alloy Steel
• Max. Pressure(s): 2,500 PSI (172 BAR)
• Max. Speed: 150 RPM
• Number of Passages: 8
• Passage Size(s): 0.380" (9.7 mm), 2.750" (69.9 mm)
• Through Bore: None
• Diameter: 12.940" (328.7 mm)
• Length: 19.330" (491 mm)

Technical features

• Model: XJ-0810008
• Function: supply grease and air service for crusher/pulverizer application
• Integration feature: customer-specified flange mount for equipment integration
• Maintenance: design allows maintenance during operations with no unscheduled down time
• Industry applications: Heavy Equipment; Factory Automation
• Media: Gas
• Operating environment: Indoor
• Construction material: Carbon / Alloy Steel
• Maximum pressure: 2,500 PSI (172 BAR)
• Maximum rotational speed: 150 RPM
• Number of fluid passages: 8
• Passage sizes: 0.380" (9.7 mm) and 2.750" (69.9 mm)
• Through bore: None
• Overall diameter: 12.940" (328.7 mm)
• Overall length: 19.330" (491 mm)
