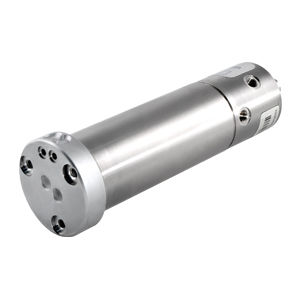

Gas rotary union BS-11912

2-passagefor automationfor medical applications

Description
2-passage rotary union designed for gas transfer in medical device assembly within cleanroom environments. Features a specialized shaft-end configuration for direct mounting to a customer-specified gripper and is intended for integration in automated assembly systems.

Overview

• Industry: Factory Automation; Medical
• Media Type(s): Gas
• Environment: Cleanroom assembly applications
• Material: Stainless Steel
• Max. Pressure(s): 100 PSI [7 BAR]
• Max. Speed: 450 RPM

Mechanical details

• Number of Passages: 2
• Passage Size(s): .125" [3.2 mm]
• Through Bore: None
• Diameter: 1.500" [38.1 mm]
• Length: 5.190" [131.8 mm]
• Shaft end: Customized for gripper mounting

Applications

• Gas supply to rotating end-effectors in medical device assembly
• Integration with automated grippers and handling systems
• Cleanroom manufacturing and assembly lines

Technical specifications

• Model / Project code: BS-11912
• Number of passages: 2
• Passage size: 0.125" (3.2 mm)
• Media: Gas
• Material: Stainless Steel
• Maximum pressure: 100 PSI (7 BAR)
• Maximum speed: 450 RPM
• Through bore: None
• Outer diameter: 1.500" (38.1 mm)
• Overall length: 5.190" (131.8 mm)
