Tractor-mounted wood chipper SUPER-PAIN 1300

trailer-mount

Overview
Industrial wood chipper designed for forestry biomass production and on-site chipping operations.

Main features

• 6 radial knives Ø 450 mm mounted on a Ø 1300 mm disk
• Rotation speed: 540–1500 rpm
• Special cutting table limiting chips to ≤ 4 mm and preventing clogging
• No shredding tail or sawdust residues
• Rugged industrial design suitable for field conditions
• Maximum feed diameter: up to 370 mm
• Throughput: up to 20 m³/h of finished chip (120 m³ theoretical)
• Adjustable discharge chute for loading into trailers
• Hydraulic drive with autonomous hydraulic generator option
• Optimized feed hopper for crane feeding
• Optional crane feeding system
• Mounting: three-point, agricultural or road trailer, or chassis-mounted

Motorization

• Diesel engine from 100 kW
• Drive options: tractor PTO or autonomous hydraulic unit

Visuals and field use

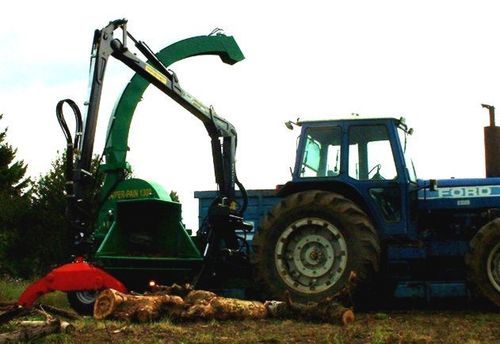

• Site images and variants: tractor-mounted version with hydraulic drives; autonomous trailer version with auxiliary engine (e.g. Cummins 250 hp)
• Applications: production of chips for composting, BRF, heating chips, forest site operations

Technical specifications

• Disk: Ø 1300 mm
• Knives: 6 radial knives, knife Ø 450 mm
• Maximum feed diameter: up to 370 mm
• Rotation speed: 540–1500 rpm
• Finished chip throughput: up to 20 m³/h (120 m³ theoretical)
• Recommended engine power: from 100 kW (indicative range: 75 to 220 kW depending on configuration)
• Drive system: tractor PTO or autonomous hydraulic unit (hydraulic drive)
• Feeding options: optimized hopper, crane feeding
• Mounting: 3-point, agricultural/road trailer or chassis
• Special cutting table limiting chip splinters to ≤ 4 mm and preventing clogging
