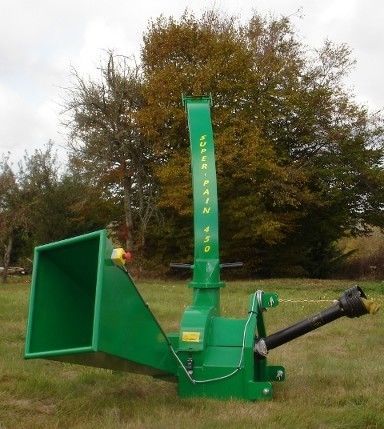

Tractor-mounted wood chipper SUPER-PAIN 450 T

Overview
In its PTO-adaptable version, this branch chipper leverages the tractor's power and mobility for an optimal capacity/price ratio. Driven by the power take-off (from 540 rpm, 1000 rpm possible), it can be fitted with a 150 mm radial blade disc in 4- or 6-blade configuration on a Ø 450 mm disc and can be equipped with hydraulic feed rollers. Designed and built in France (Yonne), the SUPER-PAIN 450 is intended for both private users and professionals. Robust, efficient, durable and easy to maintain, it accepts all woody vegetation up to the maximum admissible diameter. The resulting chips are uniform, short-fibered, free of shredding tails and dust, suitable for edging mulch, flowerbeds and vegetable gardens, usable in permaculture and BRF, and valuable as animal bedding or for equestrian surfaces.

General characteristics

• Mounting on standard agricultural three-point hitch
• Drive by PTO 540 or 1000 rpm
• Cutting capacity: up to 120 mm diameter (12 cm Ø), all woody products
• Configurable with 4 or 6 radial 150 mm knives on a Ø 450 mm disc
• Special cutting table preventing any fragment larger than 4 mm, no risk of clogging
• Complete absence of shredding tails and sawdust
• Throughput: average flow approx. 3 m³/h; instantaneous flow up to 17 m³
• Warranty: 1 year parts; lifetime structural warranty (excluding wear parts or improper use)

Options

• Road trailer: trailer adapted to carry the three-point chassis and enable secure transport (type-approved up to 450 kg, hitch as required)
• Adjustable discharge chute: allows chip discharge up to about 2 m in the chosen direction (vs ~1 m fixed without chute)
• Spare knife set
• Knife sharpener to maintain correct blade angle
• Hydraulic feed rollers: two driven feed rollers powered by the tractor hydraulics to improve feeding ergonomics (useful for difficult vegetation such as blackthorn, acacia, or very forked plants)
• Specific options available on request (special hitch, agricultural trailer for off-road use, alternative drives, etc.)

Versions and drives

• SUPER-PAIN 450 E: electric motor from 3 kW; 400 V three-phase or 240 V single-phase
• SUPER-PAIN 450 G: Kohler gasoline engine 14 hp
• Possible special adaptations on request

Technical specifications

• Type: branch chipper adaptable to PTO (three-point tractor version)
• Mounting: standard agricultural three-point chassis
• Drive: PTO 540 rpm (1000 rpm optional)
• Maximum cutting capacity: 120 mm (12 cm Ø)
• Disc: Ø 450 mm
• Knives: 150 mm radial, 4 or 6 knives depending on configuration
• Special cutting table limiting fragments (>4 mm) and reducing clogging risk
• Indicative average throughput: ~3 m³/h
• Peak instantaneous throughput: up to 17 m³
• Recommended motor power / range: approximately 2.2 to 40 kW (depending on versions and adaptations)
• Available options: adjustable discharge chute, road trailer, chip hopper, hydraulic feed rollers, spare knife set, sharpener
• Warranty: 1 year parts; lifetime structural warranty (excluding wear parts and misuse)
