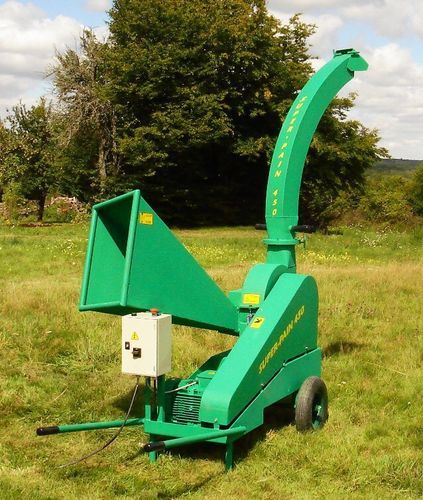

Wheel-mounted chipper shredder SUPER-PAIN 450 E

Overview
«Less noise, same performance»
In its wheelbarrow-mounted electric version, this machine is the quietest of the SUPER-PAIN 450 range and is suitable for working with minimal emissions, ideal for enclosed or noise‑sensitive sites. Available in single-phase or three-phase depending on your electrical installation. Designed and manufactured in France (Yonne), the SUPER-PAIN 450 is intended for both private users and professional operators. It is engineered for long service life and simple maintenance and accepts all woody vegetal material, from the hardest species to the softest, up to the maximum admissible diameter. Its chips are of regular size, short-fibred and produced without stringy shredding or fine sawdust, suitable for mulching borders, flowerbeds and vegetable gardens, usable in permaculture and BRF, and can be piled for fermentation following the Jean PAIN method. They can also be valorised as animal bedding or equestrian footing.

General features

• Wheelbarrow-type chassis with two large 400 mm diameter wheels
• Cutting capacity: up to 120 mm diameter, all woody materials
• Chipper with 4 radial knives 150 mm on a Ø 450 mm disc
• Special cutting table preventing any fragment larger than 4 mm, without risk of blockage
• No stringy shredding and no fine sawdust
• Throughput: up to 17 m³ instantaneous
• Warranty: 1 year all parts / lifetime structural warranty (excluding wear parts or inappropriate use)

Options

• Anchoring chassis: for fixed use in a dedicated building
• Road trailer: for use on multiple sites and easier transport (approved trailer 450 kg)
• Adjustable discharge chute: ejects chips to about 2 m height in any direction; without chute the fixed height is about 1 m
• Spare knife set: for quick replacement without waiting for sharpening
• Sharpener: to sharpen the knives while respecting the correct edge angle
• Specific options available on request (special hitch, chassis for off-road use, etc.)

Versions and drives

• SUPER-PAIN 450 E (electric version): electric motor on wheelbarrow, available single-phase or three-phase
• SUPER-PAIN 450 G: petrol engine Kohler 14 hp
• SUPER-PAIN 450 T: driven by PTO of a rototiller or microtractor
• Possibility of special adaptations

Technical specifications

• Model: SUPER-PAIN 450 E
• Maximum cutting capacity: 120 mm diameter
• Disc: Ø 450 mm
• Knives: 4 radial knives 150 mm
• Cutting table: limits fragments to 4 mm and reduces blockage risk
• Instantaneous throughput: up to 17 m³
• Chassis: wheelbarrow-type mounting, wheels 400 mm
• Ejection height with adjustable chute: approximately 2 m
• Warranty: 1 year all parts / lifetime structural warranty (excluding wear parts or misuse)
