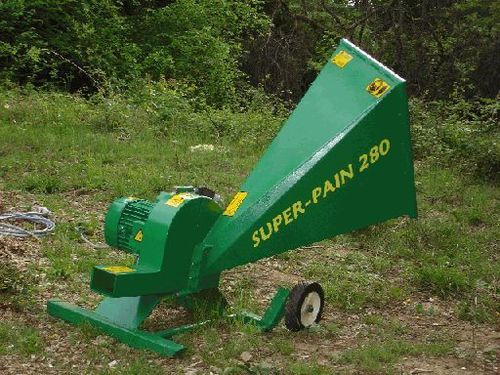

Mobile wood chipper SUPER-PAIN 280 E

Presentation
SUPER-PAIN 280 E — Quiet and efficient
In its electric version this wood chipper is fitted with a 3 kW motor available in single- or three-phase to suit electrical installations. Quieter and more eco-friendly, it is robust and efficient. Its wheelbarrow-type base allows easy handling on site. A professional small branch chipper designed and manufactured in France (Yonne). Chips are produced without sawdust or stringing; suited to gardening, permaculture, ramial chipped wood (BRF), mulching and recovery of pruning residues from hedges or fruit trees.

Technical characteristics

• Mounted on a wheelbarrow-type chassis with two large 400 mm diameter wheels for easy movement
• Cutting capacity: up to 67 mm diameter, for all woody materials
• Two radial knives 100 mm mounted on a Ø280 mm disc
• Special cutting table preventing any chip larger than 4 mm, without risk of jamming
• Chips free of sawdust and stringing
• Theoretical throughput: up to 5 m³ instantaneously

Options

• Elevating chute: discharges chips to about 1 m height (≈40 cm without chute) for direct emptying into a wheelbarrow or small trailer
• Spare blade set: for quick replacement of knives to continue work without waiting for sharpening
• Sharpener: to sharpen blades on site while maintaining the correct cutting angle

Other versions and drives

• SUPER-PAIN 280 G: petrol engine version (7 hp)
• SUPER-PAIN 280 T: PTO-driven version (tractor, microtractor or power harrow)
• Possible special adaptations on request (mechanical modifications and alternative drivetrains)

Technical specifications

• Designation: SUPER-PAIN 280 E (electric version)
• Motor: 3 kW (available single- or three-phase)
• Indicative power range: 2.2 to 3.3 kW (values for the series)
• Inlet capacity: about 67 mm (often indicated as 7 cm Ø for the series)
• Average/indicative throughput: average ≈ 0.5 m³/h; theoretical instantaneous up to 5 m³
• Cutting elements: 2 radial knives Ø100 mm on Ø280 mm disc
• Cutting table: limits chips to ≤ 4 mm and reduces jamming risk
• Chassis: wheelbarrow base with 2 wheels Ø400 mm
• Manufacture: designed and built in France (Yonne)
