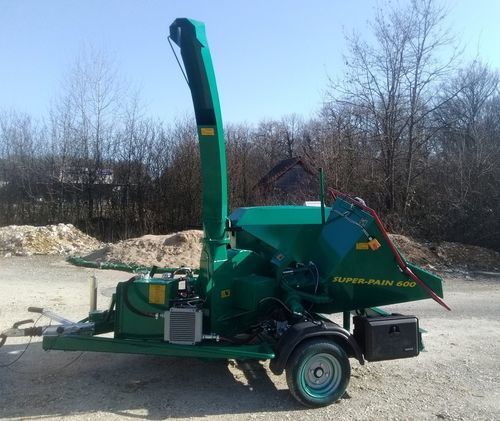

Mobile wood chipper SUPER-PAIN 600 G

tractor-mountedtrailer-mountcrawler

Presentation
In its thermal-engine version, the SUPER-PAIN 600 is ideal for landscapers, arborists and other green-space professionals. Mobile and efficient, this branch chipper can be equipped with various options and adaptations to meet specific operational needs. Designed and built in France (Yonne), it offers reliability and long life and integrates easily into projects for reprocessing and valorisation of branches and green waste. Efficient, robust and simple to maintain, it accepts all wood species from soft to hard (within the maximum admissible diameter). Its uniformly sized, short-fiber chips, free of sawdust or shredding tails, are excellent for mulching, suitable for permaculture and BRF, and can be heaped to ferment following the Jean Pain method.

General characteristics

• Thermal engine (petrol or diesel) from 25 hp depending on needs and options.
• Cutting capacity: up to 170 mm diameter (17 cm Ø).
• Standard 360° swivel discharge chute.
• Chipper with 6 radial knives of 200 mm mounted on a Ø 600 mm disk.
• Special cutting table preventing any chip larger than 4 mm, with no risk of clogging.
• No shredding tails or sawdust.
• Throughput: up to 34 m³ instantaneous (indicative average flow ~6 m³/h depending on configuration).
• Warranty period: 1 year parts; lifetime structural warranty (excluding wear parts or improper use).

Options

• Road trailer: for operations on multiple sites and easier transport (hitch and approval depending on options).
• Autonomous tracked base: for easy movement on all types of terrain.
• Hydraulic feed rollers: two feed rollers driven by an autonomous hydraulic unit equipped with the No-Stress system to regulate power demand and improve chipping ergonomics, especially on difficult vegetation (blackthorn, acacia, highly forked material).
• Spare knife set: to continue work without waiting for sharpening.
• Sharpener: to resharpen knives while respecting the cutting angle.
• Specific options available on request and custom adaptations.

Versions and drivetrains

• SUPER-PAIN 600 G (thermal mobile version on trailer).
• SUPER-PAIN 600 E: electric motor from 10 kW; 400 V three-phase.
• SUPER-PAIN 600 T: driven by tractor power take-off (three-point option).
• Possible special adaptations according to use and customer requirements.

Technical characteristics / specifications

• Model: SUPER-PAIN 600 G.
• Target users: green-space professionals, landscapers, arborists.
• Manufacture: designed and built in France (Yonne).
• Maximum cutting capacity: 170 mm (17 cm Ø).
• Chipper: Ø 600 mm disk equipped with 6 radial knives of 200 mm.
• Cutting table: limits chips to under 4 mm; reduces clogging risk.
• Chute: 360° swivel discharge.
• Throughput: up to 34 m³ instantaneous; indicative average flow on site ~6 m³/h depending on configuration.
• Compatible engines: thermal (petrol/diesel) from 25 hp; electric: ≥10 kW 400 V three-phase; tractor PTO (version T).
• Drive options: hydraulic feed rollers with autonomous unit and No-Stress system.
• Trailer and indicative masses: trailer-mounted autonomous version ~900 kg (e.g. 27 hp engine) or ~1300 kg (e.g. 50 hp engine) depending on configuration.
• Processed material: all wood species; short-fiber chips suitable for mulching, BRF and composting following the Jean Pain method.
• Warranty: 1 year parts; lifetime structural warranty (excluding wear parts and misuse).
