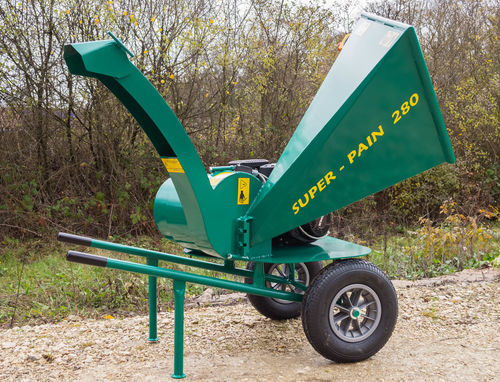

Wheeled chipper shredder SUPER-PAIN 280 G

wheel-mountedmobile

Presentation
In its petrol-engine version, this branch shredder is equipped with a Kohler 7 cv engine offering an ideal compromise between power and budget. Mounted on a wheelbarrow-type chassis with two large 400 mm diameter wheels, it is mobile on your land and can be loaded into a trailer for use elsewhere. Small branch shredder with professional quality, robust, durable and ethical, the SUPER-PAIN 280 is designed and built in France (Yonne). Chips guaranteed without stringy tails or sawdust; product suitable for mulching, permaculture, ramial chipped wood (BRF), borders and valorization of fruit-tree or hedge residues.

Technical characteristics

• Mounted on a wheelbarrow-type chassis with 2 large 400 mm diameter wheels for easy movement
• Cutting capacity: up to 67 mm diameter, all woody materials
• Shredder with 3 radial knives of 100 mm on a Ø 280 mm disk
• Special feed table preventing any splinter larger than 4 mm, without risk of clogging
• No stringy tails or sawdust
• Theoretical throughput: up to 5 m³ instantaneously

Options

• Elevating chute: discharges chips directly into a wheelbarrow or small trailer, allows ejection of chips to a height of about 1 m (versus ~40 cm without chute)
• Spare blade set: enables continuation of the job without waiting for sharpening
• Sharpener: to sharpen the knives yourself while respecting the sharpening angle

Other versions and drivetrains

• SUPER-PAIN 280 E: electric motor 3 kW; 400 V three-phase or 240 V single-phase
• SUPER-PAIN 280 T: driven by the power take-off of a tiller or microtractor
• Possibility of special adaptations on request

Technical specifications

• Model: SUPER-PAIN 280 (presented petrol version)
• Powertrain (presented version): Kohler 7 cv petrol
• Chassis: wheelbarrow type, transportable and loadable into a trailer
• Wheels: 2 large wheels Ø 400 mm
• Cutting capacity: up to 67 mm diameter
• Disk: Ø 280 mm
• Knives: 3 radial knives of 100 mm
• Special feed table: limits splinters to 4 mm maximum, prevents clogging
• Shredding result: chips without stringy tails or sawdust
• Theoretical throughput: up to 5 m³ instantaneously
• Manufacture: designed and built in France (Yonne)
