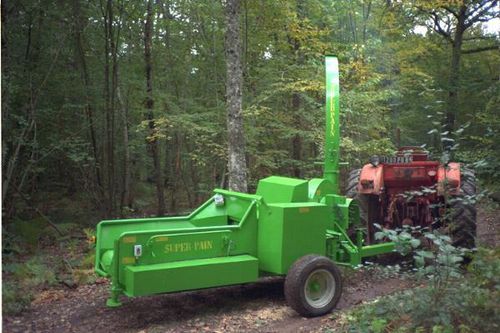

Mobile wood chipper SUPER-PAIN 900

trailer-mounttractor-mounted

Overview
Controlled productivity: mobile chipper for branches and wood residues, suited to farms, contractors and industrial sites

Main features

• 6 radial knives 300 mm mounted on a Ø900 mm disc
• Rotation speed: 540 to 1500 rpm
• Special cutting table limiting splinters to 4 mm, preventing blockages
• No tail shredding and minimal sawdust
• Heavy-duty industrial design
• Cutting capacity up to 250 mm diameter
• Hourly throughput: up to 8 m³ of finished chips (10 m³ with table; 57 m³ theoretical)
• Adjustable discharge chute for loading into a trailer
• Hydraulic feed roller: optional
• Feeding table for mechanized loading: optional
• Mounting: 3-point hitch, agricultural or road trailer, or chassis-mounted

Power options

• Electric motor: from 30 kW
• Combustion engine (petrol or diesel): from 40 kW (up to 100 kW with feeding table)
• Can be driven via tractor PTO

Options and configurations

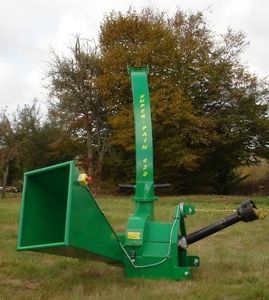

• Three-point tractor versions with feed rollers and power control

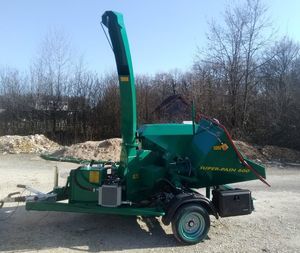

• Self-contained versions on road or agricultural trailers (with engine, trailer and optional crane)
• Versions with feeding table for mechanized loading

Technical specifications

• Number of knives: 6 radial knives
• Knife dimension: 300 mm
• Disc diameter: 900 mm
• Rotation speed: 540 to 1500 rpm
• Maximum cutting capacity: 250 mm diameter
• Hourly throughput (finished chips): up to 8 m³ (10 m³ with table; 57 m³ theoretical)
• Cutting table limiting splinters to 4 mm
• Adjustable discharge chute
• Hydraulic feed roller: optional
• Feeding table: optional
• Mounting: 3-point hitch, agricultural or road trailer, or chassis
• Electric drive: from 30 kW
• Combustion drive (petrol/diesel): from 40 kW (up to 100 kW with table)
