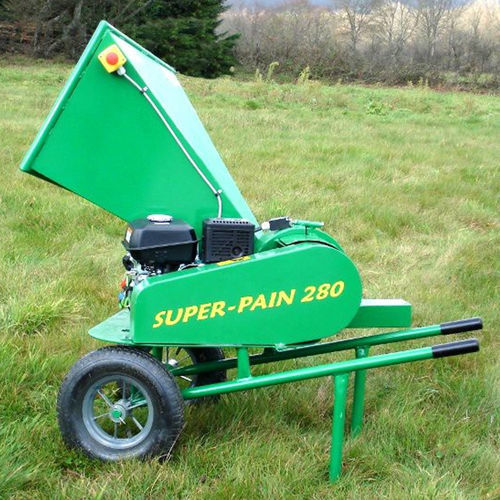

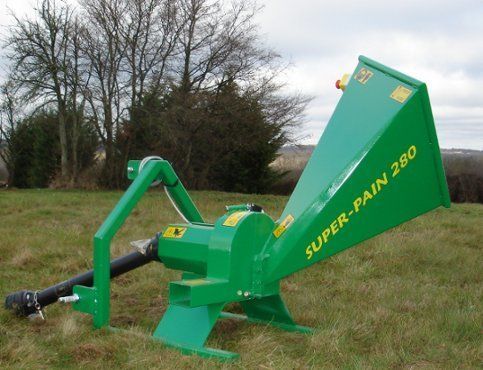

Tractor-mounted wood chipper SUPER-PAIN 280 Ttrailer-mountmobilestationary
Add to favorites
Compare this product
Characteristics
- Type
- tractor-mounted, trailer-mount, mobile, stationary
- Power
3 kW, 5 kW
(4.1 hp, 6.8 hp)Max.: 22 kW
(4.5 hp, 29.9 hp)Min.: 3 kW
(3 hp, 4.1 hp)
Description
Overview
Key features
Power options
Options & accessories
Technical specifications
- Chipper designed for processing branches into uniform chips suitable for mulching and biomass use.
- Model: SUPER-PAIN 280 with a 280 mm cutting disk and 2 or 3 radial blades.
Key features
- Disk diameter: 280 mm with radial blades Ø100 mm.
- Rotation speed: 540–1500 rpm.
- Special cutting table limits chip thickness to < 4 mm and reduces clogging risk.
- Cutting capacity: up to 67 mm diameter (depending on drive power).
- Finished chip output: up to 0.5 m³/h (theoretical instantaneous up to 5 m³, depending on branch type).
- Mounting options: tractor three-point linkage, wheelbarrow chassis or fixed frame.
Power options
- Electric motor: 3 kW — single-phase 230 V or three-phase 400 V.
- Petrol engine: 5 kW (belt transmission) and other petrol variants available.
- PTO drive: compatible with standard tractor PTO at 540 or 1000 rpm; recommended power range 3–22 kW (4–30 hp), typical recommended 2.2–3.3 kW for light use.
Options & accessories
- Elevating chute for higher discharge (available for 1000 rpm PTO models).
- Spare blade sets and sharpening tooling.
- Wheelbarrow kit for field mobility and trailer transport.
Technical specifications
- Model: SUPER-PAIN 280.
- Cutting disk: Ø 280 mm.
- Blades: 2 or 3 radial blades Ø100 mm.
- Rotation speed: 540–1500 rpm.
- Maximum cutting diameter: up to 67 mm.
- Chip thickness: < 4 mm (special cutting table).
- Average output: up to 0.5 m³/h (depending on branch type).
- Electric option: 3 kW (230 V single-phase or 400 V three-phase).
- Petrol option: 5 kW (belt transmission) and other petrol variants.
- PTO compatibility: 540 or 1000 rpm; required power 3–22 kW (4–30 hp).
- Installation: three-point linkage, wheelbarrow mount, or fixed frame.
