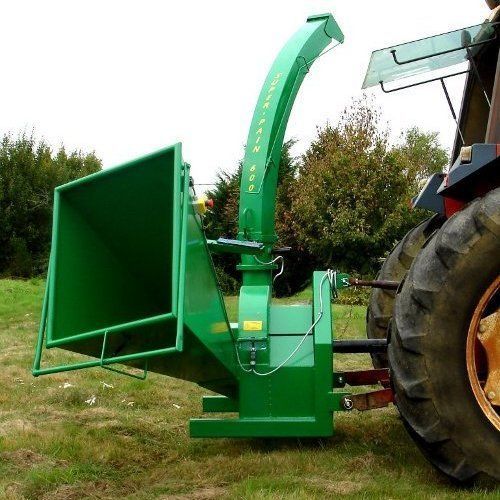

Tractor-mounted wood chipper SUPER-PAIN 600 T

Overview
Professional PTO-driven disk branch chipper designed for landscapers, farmers and municipal services. Produces homogeneous short-fibre chips < 4 mm suitable for mulching, BRF, composting and thermal use. Designed and built in France with a welded mechanical frame for field reliability.

Main features

• Disk Ø 600 mm with 6 radial blades (200 mm)
• Rotation speed range: 540–1500 rpm
• Special cutting table producing chips < 4 mm to avoid sawdust and long tails
• Cutting capacity up to Ø 170 mm (depending on drive power)
• Typical finished-chip output up to 7 m³/h (instantaneous theoretical peak up to 34 m³ depending on material)
• 360° rotating discharge neck for trailer loading up to 2 m height
• Mounting: three-point tractor PTO, agricultural/road trailer or fixed frame

Power and drives

• PTO drive: compatible with 540 or 1000 rpm; recommended tractor power ≥ 30 hp (≈25–30 cv)
• Electric motor option: ≈10–14 kW (230 V single-phase or 400 V three-phase)
• Combustion engine option (petrol or diesel): from ≈23 kW (belt transmission)

Versions & options

• Models: SUPER-PAIN 600 E (electric), 600 G (combustion), 600 T (PTO)
• Autonomous trailer versions (examples: 27 hp — trailer ≈900 kg; 50 hp — trailer ≈1300 kg)
• Optional: hydraulic feed rollers, hydraulic branch puller with autonomous hydraulic power unit, spare blade sets and on-site sharpening tools

Applications

• Intended for professionals in landscaping, agriculture, agroforestry and municipal maintenance
• Produces chips for mulching, BRF, composting, animal bedding and fuel; compatible with pile fermentation methods

Technical specifications

• Model: SUPER-PAIN 600
• Disk diameter: Ø 600 mm
• Number of blades: 6 radial blades (200 mm)
• Rotation speed: 540–1500 rpm
• Chip thickness (table): < 4 mm
• Maximum cutting diameter: up to Ø 170 mm (depending on power)
• Nominal output: up to 7 m³/h (instantaneous theoretical 34 m³ depending on branch type)
• Discharge: 360° rotating neck, suitable for trailer loading up to 2 m
• Electric motor: ≈10–14 kW
• Combustion engine: from ≈23 kW (belt transmission)
• PTO compatibility: 540 or 1000 rpm; recommended ≥ 30 hp
• Warranty: 1 year parts; structural warranty subject to conditions (exclusions for wear parts and misuse)
