Mobile wood chipper SUPER-PAIN 450 G

trailer-mounttractor-mounted

Overview

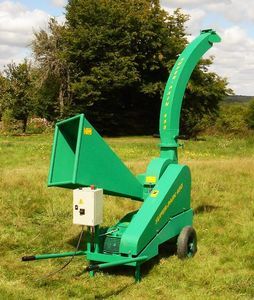

Available with a Kohler petrol engine and mounted on a wheelbarrow chassis or trailer, the SUPER-PAIN 450 G processes woody vegetation up to the admissible maximum diameter. It produces regular, short-fiber chips without stringing or sawdust, suitable for mulching, permaculture, BRF, animal bedding or equine surfaces. Manufactured in France (Yonne). Warranty: 1 year parts; structural lifetime warranty (excluding wear parts and improper use).

General features

• Wheelbarrow-type chassis with two large 400 mm diameter wheels
• Cutting capacity: up to 120 mm diameter for woody material
• 4 radial knives (150 mm) on a Ø450 mm disc
• Special cutting table limiting any fragment to ≤ 4 mm and preventing blockages
• No stringing or sawdust in the produced chips
• Throughput: up to 17 m³ instantaneous
• Warranty: 1 year parts; structural lifetime warranty (excluding wear parts and improper use)

Options

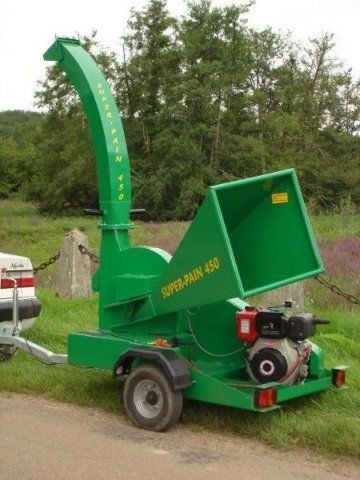

• Road trailer: for multi-site use and easier transport (hitch per customer needs, trailer homologated 450 kg)
• Road trailer with 1 m³ chip hopper: allows chip collection on the same trailer as the unit, road homologation 750 kg
• Self-propelled tracked base: for easy movement on all terrains
• Chassis adaptable to customer tracked carrier: functions as an implement for the customer's carrier
• Adjustable discharge chute: ejects chips to about 2 m height in any direction (1 m fixed without chute)
• Spare knife set
• Knife sharpening tool
• Additional bespoke options on request (special hitch, off-road agricultural trailer, other power units, etc.)

Versions and powertrains

• SUPER-PAIN 450 G (petrol engine): equipped with a Kohler engine (example power: 13 hp petrol)
• SUPER-PAIN 450 E: electric motor from 3 kW; 400 V three-phase or 240 V single-phase
• SUPER-PAIN 450 T: driven by the power take-off of a rotavator or microtractor
• Special adaptations possible on request

Technical specifications

• Model: SUPER-PAIN 450 G
• Maximum cutting capacity: 120 mm diameter
• Cutting disc: Ø450 mm
• Knives: 4 radial knives, 150 mm
• Cutting table: special, limits fragments to ≤ 4 mm
• Maximum instantaneous throughput: up to 17 m³
• Powertrain: petrol version with Kohler engine (e.g. 13 hp); other options: diesel (e.g. 10 hp depending on configuration), electric (from 3 kW) or tractor PTO
• Mounting: wheelbarrow-type chassis (400 mm wheels) or trailer / tracked base / three-point tractor depending on version
• Warranty: 1 year parts; structural lifetime warranty (excluding wear parts and misuse)
