Tractor-mounted chipper shredder SUPER-PAIN 1700autonomoustrailer-mountedtruck-mounted
Add to favorites
Compare this product
Characteristics
- Portability
- tractor-mounted, autonomous, trailer-mounted, truck-mounted
Description
Overview
Motorization
Specific adaptations possible
Examples of configurations (captions from images)
Technical specifications
- Chipper with 6 radial blades mounted on a Ø1700 mm disk.
- Rotation speed: 540–1500 rpm.
- Special cutting table producing chips < 4 mm to prevent clogging of the discharge.
- No large pieces or sawdust in the output.
- Heavy-duty welded mechanical construction.
- Cutting capacity: up to 500 mm diameter (depending on available power).
- Throughput: up to 40 m³/h of chipped material (229 m³ theoretical), depending on branch type.
- Discharge chute swivels 360° for loading into trailers up to 2 m high.
- Feeding hopper optimized for crane loading.
Motorization
- Petrol or diesel engines from approx. 200 kW.
- Can be driven by a tractor PTO (three-point linkage), compatible with 540 or 1000 rpm PTO speeds.
Specific adaptations possible
- Hydraulic bough-dragger with autonomous hydraulic generator.
- Optional feeding table for mechanical crane feeding.
- Optional feeding crane.
- Mounting options: three-point tractor, road or farm trailer, or frame/truck mount.
Examples of configurations (captions from images)

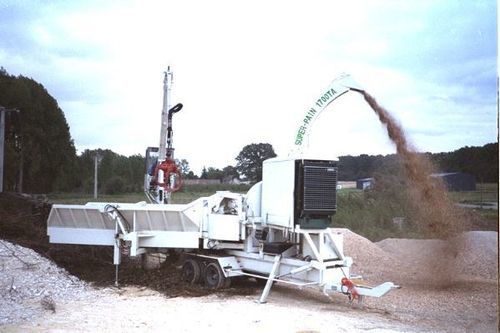

- Autonomous SUPER-PAIN 1700 chipper, VOLVO 220 kW engine, on road trailer with double 19 t central axles and EPSILON crane 5 t/m, jib length 7 m.
- Autonomous SUPER-PAIN 1700 chipper, VOLVO 220 kW engine, rear view on road trailer with double 19 t central axles and EPSILON crane 5 t/m.
- SUPER-PAIN 1700 chipper installed on 280 hp HESTON silage with NOKKA crane 4.4 t/m, jib length 7 m.
- Autonomous SUPER-PAIN 1700 chipper with 400 hp engine on truck frame, fitted with Jonsered crane 4.4 t/m, jib length 7 m.
Technical specifications
- Disk diameter: 1700 mm.
- Number of blades: 6 radial blades on the disk.
- Rotation speed range: 540–1500 rpm.
- Chip thickness: < 4 mm (special cutting table).
- Maximum branch diameter: up to 500 mm (depends on available power).
- Nominal throughput: up to 40 m³/h of chipped material (229 m³ theoretical, depending on branch type).
- Discharge: chute swivels 360°; designed for loading into trailers up to 2 m height.
- Feeding: hopper optimized for crane feeding; optional feeding table and feeding crane.
- Hydraulics: optional hydraulic bough-dragger with autonomous hydraulic generator.
- Mounting options: three-point tractor, road or farm trailer, or frame/truck mount.
- Motorization options: petrol or diesel engines (from approx. 200 kW); compatible with tractor PTO at 540 or 1000 rpm.
- Construction: heavy-duty welded mechanical construction for continuous production use.
