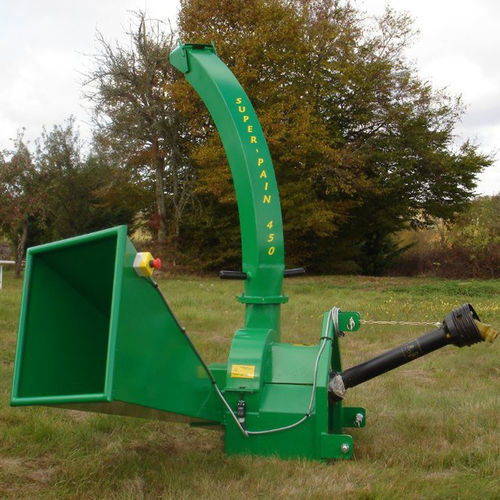

Crawler wood chipper SUPER-PAIN 450 Gtrailer-mountmobiletractor-mounted
Add to favorites
Compare this product
Characteristics
- Type
- crawler, trailer-mount, mobile, tractor-mounted
- Power
Min.: 3 kW
(4.1 hp)Max.: 50 kW
(68 hp)
Description
Overview
Motorization
Configurations and options
Technical specifications
- Professional wood chipper for branches and small trunks, 450 mm disk fitted with 4 or 6 radial 150 mm blades
- Rotation speed: 540–1500 rpm
- Special cutting table producing chips < 4 mm and minimizing jam risk
- Cutting capacity: up to 120 mm diameter
- Output: up to 5 m³/h finished chips (17 m³ instantaneous); average ~3 m³/h depending on branch type
- Robust welded mechanical construction
Motorization
- Electric motor: from 3 kW (230 V single-phase or 400 V three-phase)
- Gasoline or diesel engines: 7–15 hp with belt transmission
- PTO drive: 540 or 1000 rpm; tractor-mounted variants require approximately 20–50 kW (30–70 hp)
Configurations and options
- Mounting on three-point hitch, road trailer, farm trailer, wheelbarrow chassis or crawler base
- Optional 360° swiveling evacuation chute for loading into trailers (≈2 m height)
- Optional hydraulic feeder, 1 m³ chip storage box, spare blade kits and blade sharpener
Technical specifications
- Model: SUPER-PAIN 450
- Disk diameter: 450 mm
- Number of blades: 4 or 6 radial blades 150 mm
- Rotation speed: 540–1500 rpm
- Chip thickness: < 4 mm
- Maximum cutting capacity: up to 120 mm diameter
- Output: up to 5 m³/h finished chips (17 m³ instantaneous); typical ~3 m³/h
- Motor options: electric from 3 kW; thermal 7–15 hp; PTO 540/1000 rpm (20–50 kW)
- Optional features: swiveling chute, hydraulic feeder, 1 m³ storage box
