Steel thickness gauge SmarTest F 1.5

coatingportablemagnetic induction

Overview

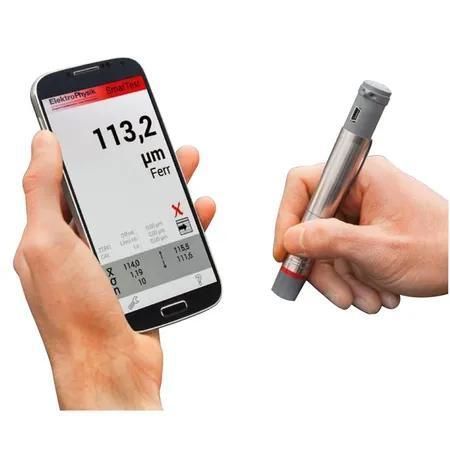

The SmarTest F 1.5 — non-destructive coating thickness gauge for steel substrates (F) with a measuring range up to 1.5 mm (1500 µm). Portable wireless sensor communicating with smartphone and tablet via Bluetooth. Order number: 05260351.

Product description
The SmarTest version of the SIDSP® sensors combines high measurement accuracy and interference immunity with modern wireless connectivity. Measurement data generated digitally in the sensor is transmitted via Bluetooth to the SmarTest app on your smartphone or tablet. The app acts as an evaluation device and replaces a conventional coating thickness gauge, enabling data logging, evaluation and export.

Standards

• DIN EN ISO 1461
• DIN EN ISO 2064
• DIN EN ISO 2178
• DIN EN ISO 2360
• DIN EN ISO 2808
• DIN EN ISO 3882
• ASTM B 244
• ASTM B 499
• ASTM D7091
• ASTM E 376

Technical specifications

• DT / NDT: NDT
• Accuracy: ± (1 µm + 0.75 % of measured value)
• Standards: DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882; ASTM B 244, B 499, D7091, E 376
• Substrate: F (steel)
• Interfaces: Bluetooth 4.0 / Bluetooth Smart, range up to 10 m; Mini-USB socket for battery charging and power supply, data interface
• Power supply: LiFePO4 battery, operating time approx. 8 h continuous operation
• Measuring range: 0 ... 1.5 mm (up to 1500 µm)
• Repeat accuracy: ± (0.5 µm + 0.5 % of measured value)
• Measuring method: magneto-inductive
• Coating thickness capability: up to 1500 µm
• Signal processing: sensor-integrated digital 32-bit signal processing (SIDSP®)
• Dimensions / Weight: ø 16 x 125 mm / 60 g
• Portable / Stationary: Portable
• Smallest measuring area: ø 5 mm
• Smallest substrate thickness: 0.3 mm
• Smallest radius of curvature (convex): 1.5 mm
• Smallest radius of curvature (concave): 7.5 mm
• Resolution at start of measuring range: 0.05 µm
• Storage temperature range: –20 °C ... +70 °C
• Operating temperature range: –10 °C ... +60 °C
