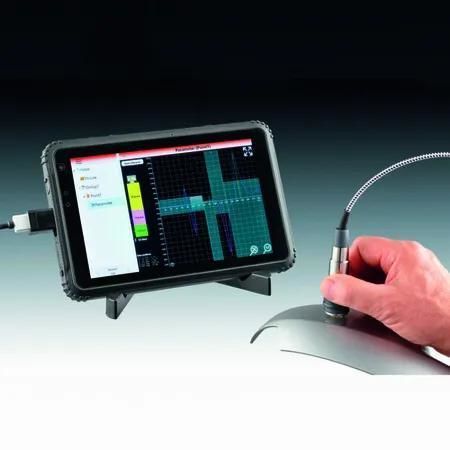

Plastic thickness gauge QuintSonic T

metalglasscoating

Short product summary
Non-destructive ultrasonic measurement of up to eight coating layers. Portable instrument with SIDSP® 32-bit sensor processing, 8-inch A‑scan display, robust housing (IP67, MIL-STD 810 G) and Gorilla® glass. Measuring range up to 6900 µm.

Description
QuintSonic T measures up to eight coatings in a single operation. It measures polymer coatings (paints, varnishes, plastics) as well as glass, ceramic or metallic coatings on virtually any substrate. Precise and easy to handle, QuintSonic T supports typical coating systems such as:

• Lacquers on plastics
• Plastics on wood
• Glass on metal
• and many more

Featuring a generous 8-inch display, QuintSonic shows measurement results together with the corresponding ultrasonic signal course (A-scan). Signal adjustment parameters are displayed simultaneously and can be adapted to the current measurement to save time. Subsequent parameter adjustment is possible via the memory option for A-scans.
QuintSonic T offers simple handling via touchscreen and an intuitive user interface. The measuring program provides a clear data structure with integrated test report generation.
QuintSonic T is also suited for harsh environments thanks to IP67, MIL-STD 810 G and extremely resistant Gorilla® glass.

Purpose and Application
Non-destructive measurement of:

• Varnish, plastics, glass, enamel and other coatings on wood, plastics, glass, metal and ceramic
• Metal coatings on plastics, ceramic and wood
• Up to 8 coatings in a single operation

Also suitable for wall thickness measurement.

Measuring principles
Ultrasonic reflection (DIN EN ISO 2808, method 10)

Features

• Quick evaluation and high accuracy thanks to sensor-integrated digital 32-bit signal processing (SIDSP®)
• Over 40 measuring values per minute: place, wait 1 second, done
• Only 5 mm measuring area enables measurements on small and curved parts (contact area 11 mm Ø)

Scope of delivery

• QuintSonic SIDSP® sensor
• SIDSP® sensor cable
• Industrial tablet with evaluation software
• Tablet stand
• Operating manual (German / English)
• 1 bottle coupling gel, 100 ml
• 1 bottle Aqua dest (couplant), 100 ml
• Single layer standard for gauge verification
• Plastic carrying case

Technical data

• DT / NDT: NDT
• Accuracy: ± (1 µm / 0.04 mils + 1 %) of reading when calibrated with a cross cut standard
• Substrate: All
• Resolution: 0.1 µm / 0.004 mils
• Calibration: Sound velocity calibration for up to eight layers
• Layer thickness: up to 6900 µm

Additional technical data

• Measuring range: max 6900 µm / max. 271.65 mils (adjustable ranges: 400 µm, 900 µm, 1900 µm, 3900 µm at 2375 m/s for all layers to achieve most precise scanning)
• Storage temperature: -10..+50°C / +14..+122°F
• Operating temperature: +5..+50°C / +41..+122°F
• Portable / Stationary: Portable
• Minimum layer thickness: Approx. 10 µm (depending on material sound velocity)
• Multiple coating ability: Yes
• Minimum area for measurement: 5 mm Ø (contact area 11 mm Ø)

Characteristics / technical specifications

• Model: QuintSonic T
• Order number: 05210351
• Max. measurable layer thickness: 6900 µm
• Up to 8 coatings in a single operation
• Display: 8-inch with A-scan visualization and parameter display
• Signal processing: SIDSP® (sensor-integrated digital 32-bit)
• Resolution: 0.1 µm / 0.004 mils
• Accuracy: ± (1 µm / 0.04 mils + 1 %) (when calibrated with cross cut standard)
• Measuring area: 5 mm Ø (contact area 11 mm Ø)
• Protection / robustness: IP67, MIL-STD 810 G, Gorilla® glass
• Includes: sensor, sensor cable, industrial tablet with software, stand, manual (DE/EN), coupling gel (100 ml), Aqua dest (100 ml), single layer standard, carrying case
