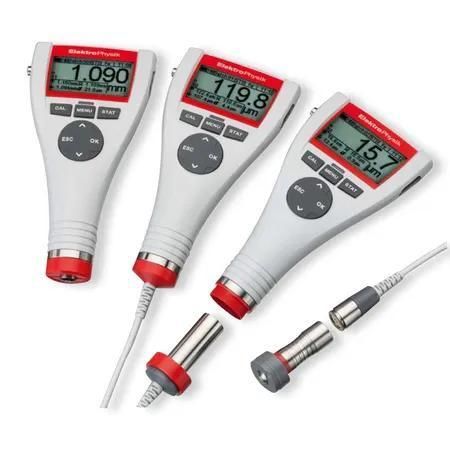

Non-ferrous material thickness gauge MiniTest 735-FN1.5/0.7-90

plasticmetalcoating

Short description
Non‑destructive coating thickness measurement on steel (F) up to 1500 µm and on non‑ferrous metals (N) up to 700 µm. External sensor available for measurements in pipes and hard‑to‑reach areas. The MiniTest series measures non‑magnetic coatings on ferromagnetic substrates (paint, plastics, chrome, etc.) and insulating coatings on conductive substrates (aluminum, copper, titanium, austenitic stainless steel), covering a wide range of industrial applications.

Model / order number
Model designation on the page: MiniTest 735-FN1.5/0.7-90. Order number: 05253751.

Standards

• DIN EN ISO 1461
• DIN EN ISO 2064
• DIN EN ISO 2178
• DIN EN ISO 2360
• DIN EN ISO 2808
• DIN EN ISO 3882
• DIN EN ISO 19840
• ASTM B 244
• ASTM B 499
• ASTM D7091
• ASTM E 376
• ASTM AS 3894.3
• SS 1841 60
• SSPC-PA 2

Technical data

• Test type: NDT (non‑destructive testing)
• Measurement rate: 70 readings/min in single‑value mode; 20 readings/sec in continuous mode
• Substrate: F / NE (ferromagnetic / non‑ferromagnetic)
• Wet / Dry: dry
• Coating thickness range: up to 1500 µm (steel), up to 700 µm (non‑ferrous metals)
• Calibration modes: factory, zero, 2‑point, 3‑point, "rough" calibration method
• Units: switchable between metric µm, mm, cm and imperial mils, inch, thou
• Power supply: 2 × AA batteries (replaceable), optional rechargeable NiMH AA (HR6); power‑save mode with configurable auto‑off
• Data memory: 10 memory blocks for up to 10,000 values (MiniTest 725 and 735) with flexible allocation
• Universal probes: automatic substrate detection with FN probes
• Interfaces: USB and Bluetooth
• Limit monitoring: visual and acoustic alarms
• Portable / stationary: portable
• Storage temperature: –20 °C … 70 °C
• Operating temperature: –10 °C … 60 °C
• Statistics: count, min, max, mean, standard deviation, coefficient of variation, single value and block statistics (configurable / standard‑compliant)
• Continuous mode: for rapid detection of thickness changes
• International calibration procedures: ISO, SSPC, "Swedish", "Australian"

Characteristics / specifications

• Product family: MiniTest
• Measurement principle: non‑destructive coating thickness measurement on coated substrates
• Max. range (steel): up to 1500 µm
• Max. range (non‑ferrous metals): up to 700 µm
• External probe: available for pipes and hard‑to‑reach locations
• Storage & transfer: extensive on‑board storage, USB and Bluetooth data transfer
• Operating & storage conditions: operating –10 °C … 60 °C; storage –20 °C … 70 °C
