Concrete structure thickness gauge Model 455

plasticpaintcoating

Description The P.I.G. 455 is a paint inspection gauge suitable where conventional electromagnetic measuring techniques are ineffective, specifically for coatings on wood, concrete, plastics and other non-metallic substrates.

Testing Principle Testing with the P.I.G. 455 is based on the standardised wedge-cut procedure: the coating is cut at a defined angle through to the substrate. Layer thickness (s) is calculated from the slope projection (b) of the cut face measured with a measuring microscope and the cutting angle (α). Individual layer thicknesses in multilayer systems can also be determined.

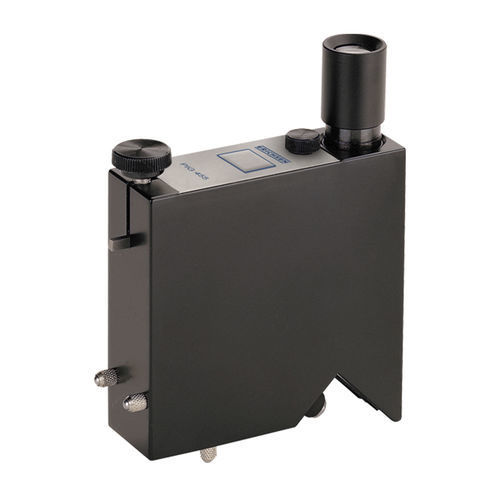

Design and Function The P.I.G. 455 consists of a black-painted aluminium block incorporating the following functional elements:

• Exchangeable carbide tip with precision-ground angular cutting blade.
• Measuring microscope with 50× magnification and a reticle (2 mm with 1/100 division), also suitable for inspection tasks.
• Two pairs of support pins to hold the measuring microscope securely and guide the carbide tip.
• Battery compartment for two AA (mignon) batteries.
• Combination of LED and fibre-optic light guide for optimum specimen illumination at low current consumption.
• Key for the integrated illumination.

Scope of delivery

• Paint Inspection Gauge P.I.G. 455
• Carbide tip No. 6
• AA batteries (2 pcs)
• Marking pen
• Leather case
• Operating instructions

Standards

• DIN 50986
• DIN EN ISO 2808
• ASTM D 4138
• AS 1580 Method 408.1

Technical data DT/NDT: DT
Substrate: wood, concrete, plastics and other non-metallic substrates
Dimensions: approx. 110 x 85 x 25 mm
Net weight: 0.4 kg
Light source: LED diffuse white
Power supply: 2 x AA batteries
Layer Thickness: up to 2000 µm
Multiple Coating Ability: Yes
Measuring range (standard): 2 - 200 µm
Measuring microscope (Reticle): 2 mm (1/100 division)
Measuring microscope (Magnification): 50

Characteristics / technical specifications

• Model: P.I.G. 455
• Measuring principle: Standardised wedge-cut procedure
• Measuring microscope magnification: 50×
• Reticle: 2 mm with 1/100 division
• Measuring range (standard): 2 - 200 µm
• Maximum layer thickness: up to 2000 µm
• Substrate compatibility: coatings on wood, concrete, plastics and other non-metallic substrates
• Dimensions: approx. 110 x 85 x 25 mm
• Net weight: 0.4 kg
• Illumination: LED with fibre-optic light guide
• Power supply: 2 x AA batteries
