Plastic thickness gauge WedgeSoft X

materialcoatingfor concrete structures

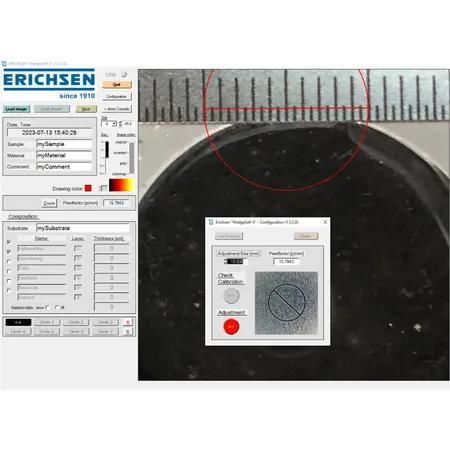

WedgeSoft X is a software solution for mechanical-optical coating thickness measurement that imports separately captured images (from a digital microscope, smartphone or tablet) and determines layer thicknesses up to 6000 µm. It is delivered with a security dongle for activation and supports multi-layer measurements (up to 6 layers).


Measurement workflow

The software is executed via a security dongle and is activated by plugging the dongle into the computer.

Images intended for measurement must provide the camera scale factor as a verification variable (the software provides an optional input) or include a scale placed next to the bore (e.g. a calibrated steel ruler).

Contrast lines are positioned by cursor at the transition contrast from substrate to coating and at the upper edge of the coating.

After entering the wedge cut angle, the software automatically calculates the layer thickness.

Several layers (up to 6) can be marked and measured simultaneously.

Scope of delivery

Software WedgeSoft X

Security dongle

Notes

The special TCG drill bit is not included in the scope of delivery.

Technical characteristics / specifications

Order number: 03350331

Maximum measurable coating thickness: up to 6000 µm

Multi-layer measurement: up to 6 layers simultaneously

Activation: security dongle (included)

Supported image sources: digital microscope, smartphone, tablet (import of separately captured images)

Scale verification: camera scale factor input or physical scale placed next to the bore (e.g. calibrated steel ruler)

Measurement method: manual placement of contrast lines and automatic thickness calculation after wedge cut angle entry

Special drill bit TCG: not included (available as accessory)
