Material thickness gauge PAINTXPLORER 548

coatingbenchtopoptical

Overview

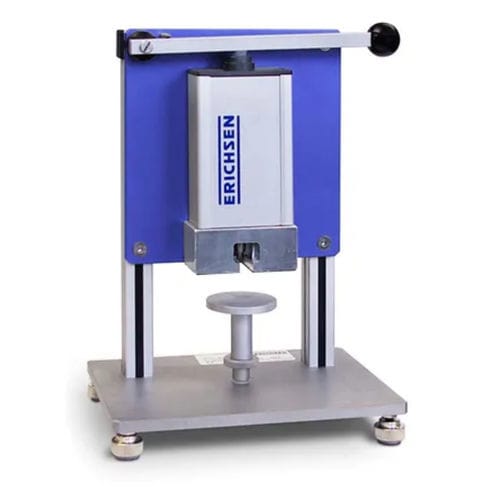

The PAINTXPLORER 548 is a mechanical-optical coating thickness measuring instrument designed to extend the application range of the PAINT BORER 518 MC/518 USB. It is intended for sensitive drillings into rigid or brittle substrates and permits measurement of coating layers up to 2000 µm. As a compact tabletop laboratory unit the device features an improved high-precision rotating/sliding axle-bearing to reduce cutting-edge chipping. The measuring microscope is available separately, keeping the drilling unit slim and handheld-capable while also compatible with the included stand.

General description
The PAINTXPLORER 548 uses the standardized wedge-cutting (keil) method combined with drilling to determine coating thickness. It was developed to minimize limitations encountered when drilling brittle materials and to provide precise layer separation even if minor eccentricity occurs in the drill or centre axle. The unit can be operated by hand or used on the supplied drilling stand; mobility is limited to the length of the mains cable and the unit is intended as laboratory equipment.

Operation

• Apply a contrast mark to the coating.
• Place the instrument on the specimen and position the drill directly above the test point. If using the stand, position the test point beneath the drill and fix the specimen by rotating the pressure plate.
• Drill through the coating down to the substrate.
• Perform the measurement with a microscope, taking the scale factor into account.

Scope of delivery

• Thickness measuring instrument PAINTXPLORER 548
• Drilling stand
• Drill no. 5 for film thicknesses up to 300 µm (scale factor 3 µm/scale division; cutting angle 8.5°)
• 2 felt-tip pens (black / silver)
• Screwdriver
• Tool for drill change
• Power pack (100 - 240 VAC, 47 - 63 Hz)
• Plastic case
• Operating instructions

Standards

• EN ISO 19399
• ISO 2808
• ASTM D 4138
• ASTM D 5796

Technical data

• Drive: Electric
• DT / NDT: DT
• Substrate: Any
• Layer thickness: up to 2000 µm
• Multiple coating ability: Yes
• Drilling unit dimensions: 145 mm x 70 mm x 40 mm (H x W x D)
• Drilling unit net weight: approx. 600 g
• Drilling stand dimensions: 280 mm x 190 mm x 120 mm (H x W x D)
• Drilling stand net weight: approx. 3.2 kg
• Measuring microscope (456-50) dimensions: 105 mm x 130 mm x 40 mm (H x W x D)
• Measuring microscope (456-50) net weight: approx. 150 g
• Measuring microscope (456-50) power supply: battery (9V) 6LR61
• Measuring microscope (456-50) scale division: 20 µm
• Measuring microscope (456-50) measuring range: 2 mm
• Drilling unit mains supply (plug-in power pack): 100 - 240 VAC, 47 - 63 Hz → 18 VDC / 0.8 A
• Drill rotational speed: approx. 500 rpm
• Measuring microscope magnification factor: 50x

Characteristics / technical specifications

• Model: PAINTXPLORER 548
• Function: Mechanical/optical coating thickness measurement using wedge-cutting and drilling
• Max. measurable layer thickness: up to 2000 µm
• Suitable for: multiple coating layers and any substrate
• Drive: Electric (drilling unit)
• Drill speed: approx. 500 rpm
• Measuring microscope (optional): type 456-50, magnification 50x, scale division 20 µm, measuring range 2 mm, battery (9V)
• Drilling unit dimensions: 145 x 70 x 40 mm (H x W x D); net weight approx. 600 g
• Drilling stand dimensions: 280 x 190 x 120 mm (H x W x D); net weight approx. 3.2 kg
• Power supply (plug-in power pack): 100 - 240 VAC, 47 - 63 Hz → 18 VDC / 0.8 A
