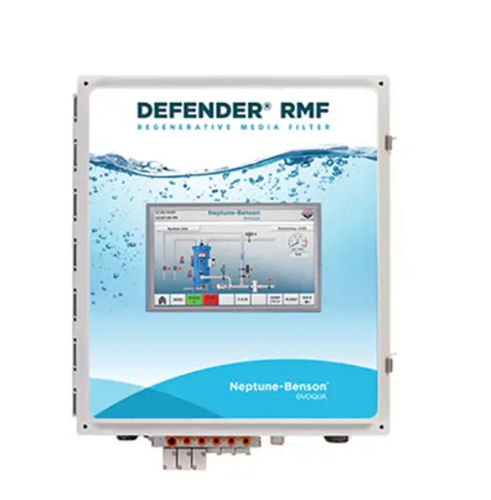

Rugged process controller Defender® RMF

programmableModbus

Overview
Control and monitoring solution for Defender® RMF systems, integrating a high-resolution 7" touch HMI with Siemens Simatic S7-1200 PLC for local and remote operation.

Description
The Defender® RMF Controller provides an animated graphical interface and advanced communication, data logging and remote monitoring capabilities. It centralizes control of core RMF processes and offers diagnostic tools to support maintenance and troubleshooting.

Easy to Use
Operated via a 7" high-resolution TP700 touch screen HMI. Clear on-screen menus and animated graphics guide operators through step-by-step procedures for standard and maintenance operations.

Advanced Control
Manages bump, precoat, drain/rinse cycles, pneumatic valves, recirculation pumps, vacuum transfer system and heater cool-down delays. Bump schedules and programmable relays are configurable to match process requirements.

Remote Monitoring and Control
Built-in web server and e-mail client enable remote access, monitoring and notifications. Logged data (pressure, bump frequency, drain/purge events and more) is exportable for analysis and reporting. Supports desktop and mobile viewing.

At a Glance

• Siemens hardware/architecture: Simatic S7-1200 (1212C CPU) + TP700 HMI
• NEMA-4X / IP65 polycarbonate enclosure
• Enclosure power: 110/220V; solenoid valve power: 24VDC
• UL 508A certified; CE approved
• Field upgradable firmware/software
• 7" high-resolution touch display with five built-in HMI languages
• Delta-P displayed on home screen; high-resolution graphics for vessel/valve status
• Three-level user authorization and on-screen operating/maintenance manual
• Diagnostic menus, manual override of valves and operations
• Built-in web server, e-mail client, integrated network card
• Remote monitoring/operation; view/control via web browser
• Communications: Modbus/TCP; optional BacNET integration

Caractéristiques / spécifications techniques

• HMI: 7" high-resolution touch screen (TP700)
• Controller hardware: Siemens Simatic S7-1200 (1212C CPU)
• Enclosure: NEMA-4X / IP65 polycarbonate
• Enclosure power supply: 110/220V
• Solenoid valve power supply: 24VDC
• Certifications: UL 508A certified; CE approved
• Communications: Integrated network card, Modbus/TCP, optional BacNET
• Remote capabilities: Built-in web server, e-mail client, remote monitoring and control, exportable logged data
• Software: Field upgradable firmware/software; on-screen operating and maintenance manual
• Security: Three-level user authorization
• Controlled functions: bump, precoat, drain/rinse cycles, pneumatic valves, recirculation pumps, vacuum transfer system, heater cool-down delay
• Logging/Alarms: Continuous data logging (pressure, bump frequency, drain/purge etc.), automatic error alerts, maintenance reminders
