Process water purification unit Vantage®

industrialreverse osmosis

Description

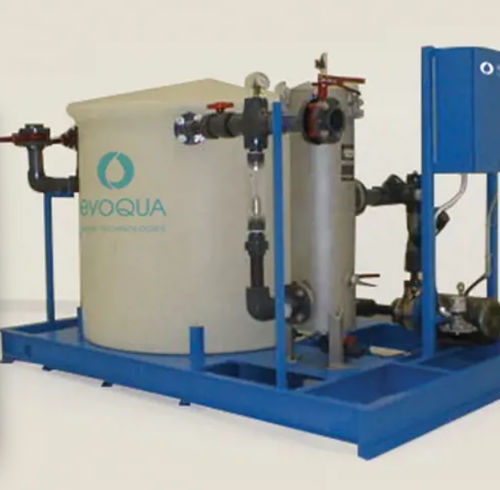

Vantage® Clean-in-Place (CIP) systems are packaged solutions designed to clean and sanitize reverse osmosis and other membrane systems. They remove accumulated ionic and organic foulants to restore membrane performance. Units are supplied as mobile cart-mounted skids for smaller installations or as steel-frame mounted skids for larger systems. Each packaged CIP system includes pumps, tanks and controls required to perform membrane cleaning operations safely and reproducibly.

Benefits

• Removes ionic and organic fouling that reduces membrane permeate flow and quality
• Restores membranes to near-original performance, reducing production loss
• Extends membrane service life and delays replacement
• Improves permeate water quality and process reliability

Features

• pH monitor for cleaning solution control
• High-temperature shutoff to protect components and membranes
• Low-flow shutoff to prevent pump damage during cleaning
• PE (polyethylene) cleaning/storage tank
• Stainless steel (SST) pumps and filter housings
• Available as mobile cart or steel-frame skid

Technical specifications

• Flow rate, maximum: 225 gpm (≈51 m³/h)
• Flow rate, minimum: 30 gpm (≈6.8 m³/h)
