Reverse osmosis desalinator Vantage® M84commercialfor water treatmentfor industrial applications
Add to favorites
Compare this product
Characteristics
- Technology
- reverse osmosis
- Domain
- commercial, for water treatment, for industrial applications
- Other characteristics
- low energy consumption, for brackish water
- Flow rate
Max.: 48.62 m³/h
(1,717.18 ft³/h)Min.: 24.31 m³/h
(858.57 ft³/h)
Description
Overview

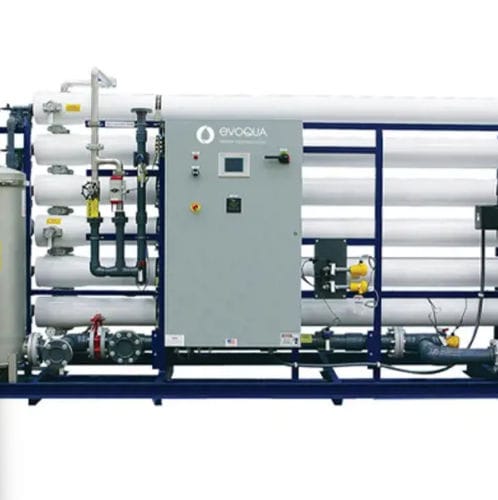

Vantage® M84 Reverse Osmosis (RO) systems are pre-engineered, pre-assembled and factory-tested single-pass 8-inch units designed for industrial and commercial water treatment applications. RO membranes typically remove 90–99.9% of suspended and dissolved solids. M84 units deliver fast on-site commissioning with simple utility connections and easy-to-configure controls. Available models: Economy (E), Plus (P), Deluxe (D) and Select (S).
Key benefits
Features
Specifications
Vantage® M84 Reverse Osmosis (RO) systems are pre-engineered, pre-assembled and factory-tested single-pass 8-inch units designed for industrial and commercial water treatment applications. RO membranes typically remove 90–99.9% of suspended and dissolved solids. M84 units deliver fast on-site commissioning with simple utility connections and easy-to-configure controls. Available models: Economy (E), Plus (P), Deluxe (D) and Select (S).
Key benefits
- Compact footprint reduces required floor space
- Rapid equipment delivery to keep projects on schedule
- Clean-in-place connections improve maintainability
- Comprehensive factory testing at an ISO 9001 certified facility
Features
- Choice of brackish water or low-energy thin-film composite (TFC) membranes (400 ft2)
- High-pressure 316 stainless steel vertical multistage feed pump
- ASME Code FRP RO pressure vessels with pressure relief protection
- PVC low-pressure feed, product and reject piping; 316L stainless steel high-pressure piping
- Industrial coated carbon steel frame (304 stainless steel frame for Select model)
- Dry contacts provided for chemical feed, pretreatment equipment, storage tank levels and pressure switches
- All alarm and shutdown conditions indicated on the control interface
- Optional storage tank level control via 4-20 mA input on Deluxe and Select models
Specifications
- Flow rate, maximum: 214 gpm
- Flow rate, minimum: 107 gpm
- Nominal recovery rate: 75%
- Number of passes: One (single-pass)
- Membrane options: brackish water or low-energy TFC membranes (400 ft2)
- Feed pump: high-pressure 316 stainless steel vertical multistage
- Pressure vessels: ASME Code FRP with pressure relief protection
- Piping: PVC low-pressure for feed/product/reject; 316L stainless steel for high-pressure lines
- Frame: industrial coated carbon steel (304 stainless steel for Select)
- Controls: dry contacts for chemical feed, pretreatment, tank levels and pressure switches; alarm and shutdown indication on control interface
- Optional tank level control via 4-20 mA input on Deluxe/Select models
