Disc filter unit Forty-X®

strainerpanelfor water

Overview

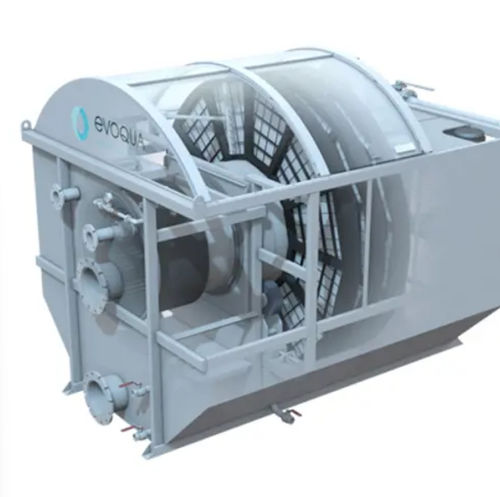

The Forty-X® Disc Filter Armor series is a high-rate filtration device that utilizes an integrated pre-screen and stainless-steel panel designed to accommodate high solids loading capacities and greater hydraulic throughput. The woven optimum tertiary mesh (OTM) filter panel utilizes 316L stainless-steel threads to create a weave that improves solids collection and rejection. The panel configuration includes a robust, molded structural frame and a pressure assisted seal allowing panels to sustain and operate at a higher headloss and provide higher throughput compared to other woven polyester, flat panel disc filter designs. Evoqua’s Forty-X Disc Filter Armor series combines the technology of outside-in and inside-out filtration into a single PLC controlled unit; influent water flows through the prescreen (outside-in) into the disc filter panels (inside-out). This combination of two filtration technologies into one unit provides an effective and robust option for difficult applications.

Patents
May be covered by one or more of the following patents: 7,597,805; 7,972,508; 8,118,175; 8,409,436; 8,801,929; 8,808,542; 8,961,785.

Features

• An integrated pre-screen to accommodate high solids loading and protect the disc filter by removing organic and inorganic materials.
• Woven optimum tertiary mesh (OTM) filter panels utilize 316L stainless steel threads to create a weave that improves solids collection and rejection.
• Automated chemical cleaning system.
• Easy to operate and maintain.
• Modular design offers flexibility and expandability.
• Suitable for retrofit of existing conventional filters.

Characteristics / Spécifications techniques

• Filtration type: Combined outside-in (pre-screen) and inside-out (disc panels) in a single PLC-controlled unit.
• Filter panel material: Woven optimum tertiary mesh (OTM).
• Thread material: 316L stainless steel threads in the OTM panels.
• Panel construction: Robust molded structural frame with pressure-assisted seal.
• Design benefits: Accommodates high solids loading, sustains higher headloss, provides greater hydraulic throughput versus woven polyester flat panel designs.
• Cleaning: Automated chemical cleaning system included.
• Control: PLC controlled unit.
• Modularity: Modular design for flexibility and expandability; suitable for retrofit of conventional filters.
• Documentation: Product data sheets available (two data sheets referenced).
• Patent coverage: See patents listed above.
