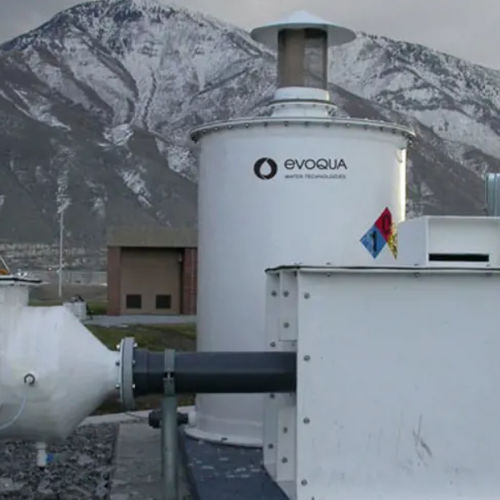

Activated carbon adsorber RJ Environmental™

Product overview
Evoqua's RJ Environmental™ activated carbon and dry media odor control systems are modular solutions for treating H2S and nuisance odours across a wide range of flowrates and odor strengths. Configurable media types and housing formats allow use as a standalone polishing stage or integration with upstream biological or chemical treatments.

Key benefits

• Low installation costs through compact, configurable designs.
• Low pressure-drop design to reduce fan energy requirements.
• Extended media life and increased H2S loading capacity versus comparable systems.
• Available for very high flowrates (up to 60,000 CFM).
• Compatible with other Evoqua odor-control technologies for multistage treatment.

Description
Systems handle treatment flowrates from 100 CFM up to 60,000 CFM and accept a range of medias including Midas® Odor Control Media, virgin activated carbon, impregnated carbons and other dry medias. Units are suitable for lower odor loads or as a polishing stage following biological, chemical or physical pretreatment.

Features

• Cylindrical and rectangular housings available.
• Vertical and horizontal flow orientations; V-banks, dual beds, quad banks and single beds.
• Layered media configurations recommended for complex odor profiles.

Technical specifications

• Treatment flow rate range: 100 CFM to 60,000 CFM.
• Media options: Midas® Odor Control Media, virgin activated carbon, impregnated carbons and other dry medias.
• System configurations: cylindrical and rectangular housings.
• Flow orientations: vertical and horizontal.
• Bank configurations: V-banks, dual beds, quad banks, single beds.
• Designed for low pressure drop to minimize energy consumption.
• Engineered for long media life and increased H2S loading capacity.
• Intended uses: standalone polishing stage or treatment for low-to-moderate odor loads; compatible with other Evoqua odor-control technologies.
